Disassembly

AIR CONDITIONING: AIR CONDITIONING UNIT: DISASSEMBLY

DISASSEMBLY

1. REMOVE AIR DUCT SUB-ASSEMBLY NO.2

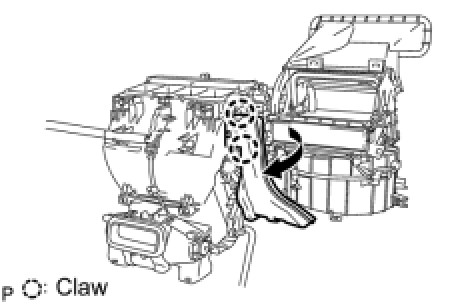

(a) Release the 2 claws and remove the air duct sub-assembly No.2 as shown in the illustration.
2. REMOVE BLOWER ASSEMBLY Removal
3. REMOVE AIR OUTLET CONTROL SERVO MOTOR





(a) Disconnect the 2 connectors and remove the air conditioner harness.





(b) Remove the 3 screws and then the air outlet control servo motor.
4. REMOVE AIR MIX CONTROL SERVO MOTOR





(a) Remove the 2 screws and air mix control servo motor.
5. REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY

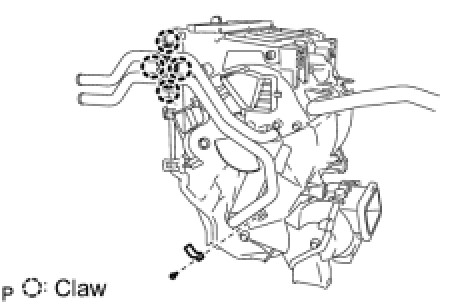

(a) Remove the screw and clamp.
(b) Release the 4 claws and remove the clamp.

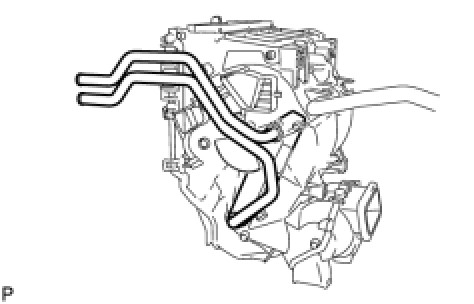

(c) Remove the heater radiator unit sub-assembly from the air conditioning radiator assembly.

NOTE: Prepare a drain pan or cloth in case the cooling water leaks.

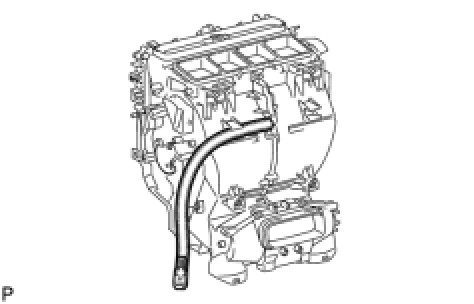

6. REMOVE COOLER AIR HOSE





(a) Remove the cooler air hose with the cooler (room temp. sensor) thermistor.
(b) Remove the cooler air hose with the cooler (room temp. sensor) thermistor.

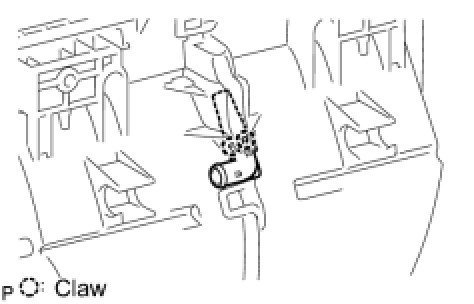

7. REMOVE ASPIRATOR





(a) Disengage the 2 claws and then remove the aspirator.
