Installation








LIGHTING: HEADLIGHT DIMMER SWITCH: INSTALLATION

INSTALLATION

1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY

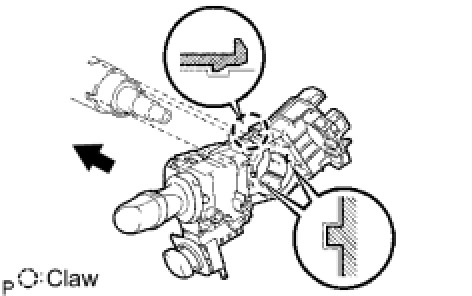

(a) Install the headlight dimmer switch assembly with the claw as shown in the illustration.

HINT: Make sure that the claw is completely engaged.

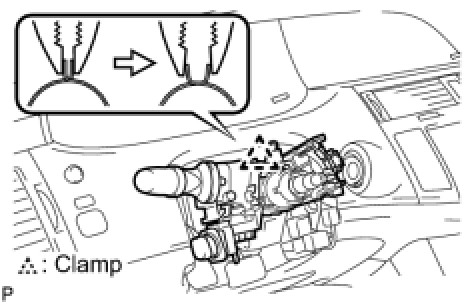

(b) Install the headlight dimmer switch assembly with the clamp.
(c) Connect the connector.
2. INSTALL SPIRAL CABLE SUB-ASSEMBLY
3. INSTALL STEERING COLUMN COVER Installation
4. INSTALL STEERING COLUMN COVER LWR Installation
5. ADJUST SPIRAL CABLE SUB-ASSEMBLY
6. INSTALL STEERING WHEEL ASSEMBLY Installation
7. INSPECT STEERING WHEEL CENTER POINT
8. INSTALL HORN BUTTON ASSEMBLY Installation
9. INSTALL STEERING WHEEL COVER LOWER NO.2 Installation
10. INSTALL STEERING WHEEL COVER LOWER NO.3 Installation
11. CONNECT BATTERY NEGATIVE TERMINAL
12. INSPECT HORN BUTTON ASSEMBLY
13. INSPECT SRS WARNING LIGHT( Service Precautions)
14. PERFORM INITIALIZATION
(a) Some systems need initialization when disconnecting the cable from the negative battery terminal ( Repair Instruction - Initialization).
