Installation








TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: INSTALLATION

INSTALLATION

1. INSTALL TIRE PRESSURE WARNING ECU

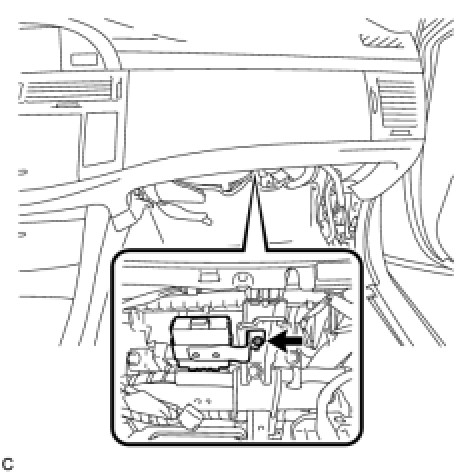

(a) Install the tire pressure warning ECU with the screw.

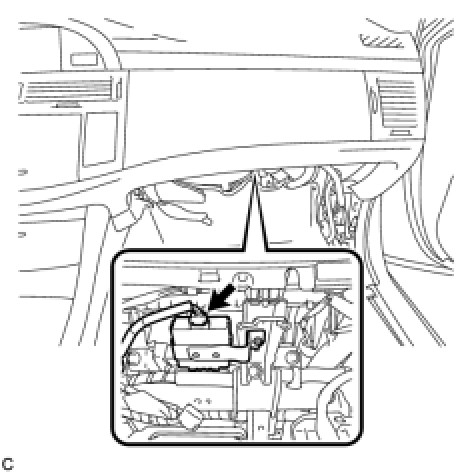

(b) Connect the connector to the tire pressure warning ECU.
2. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL RH
3. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 2
4. INSTALL FRONT DOOR SCUFF PLATE RH
5. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
6. CONNECT CABLE TO BATTERY NEGATIVE TERMINAL

NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

7. REGISTER TRANSMITTER ID

HINT: Registration

8. INSPECT TIRE PRESSURE WARNING SYSTEM

HINT: Test Mode Procedure

9. INITIALIZE SYSTEM

NOTICE:
- Be sure to register the transmitter IDs of all tires including the grand spare tire in the ECU before initialization.
- Be sure to inflate all tires including the grand spare tire to the proper inflation pressure before initialization.

HINT: Initialization
