Heated Glass Element: Service and Repair

WINDSHIELD / WINDOWGLASS: WINDOW DEFOGGER WIRE: REPAIR

REPAIR

1. REPAIR REAR WINDOW DEFOGGER WIRE

HINT: If necessary, repair the defogger wire.





(a) Clean the broken wire tips with grease, wax and silicone remover.

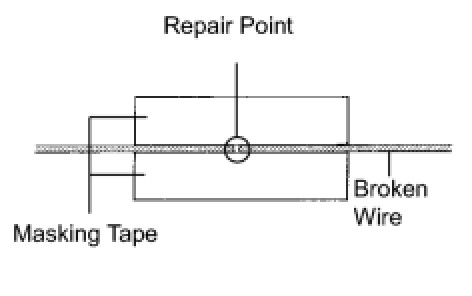

(b) Place 2 pieces of masking tape along both sides of the wire.
(c) Thoroughly mix the repair agent (Dupont paste No. 4817 of equivalent).





(d) Using a fine tip brush, apply a small amount of the agent to the wire.
(e) After a few minutes, remove the masking tape.

NOTE: Do not touch the repaired part on the wire for at least 24 hours, until the repair agent is completely fixed.
