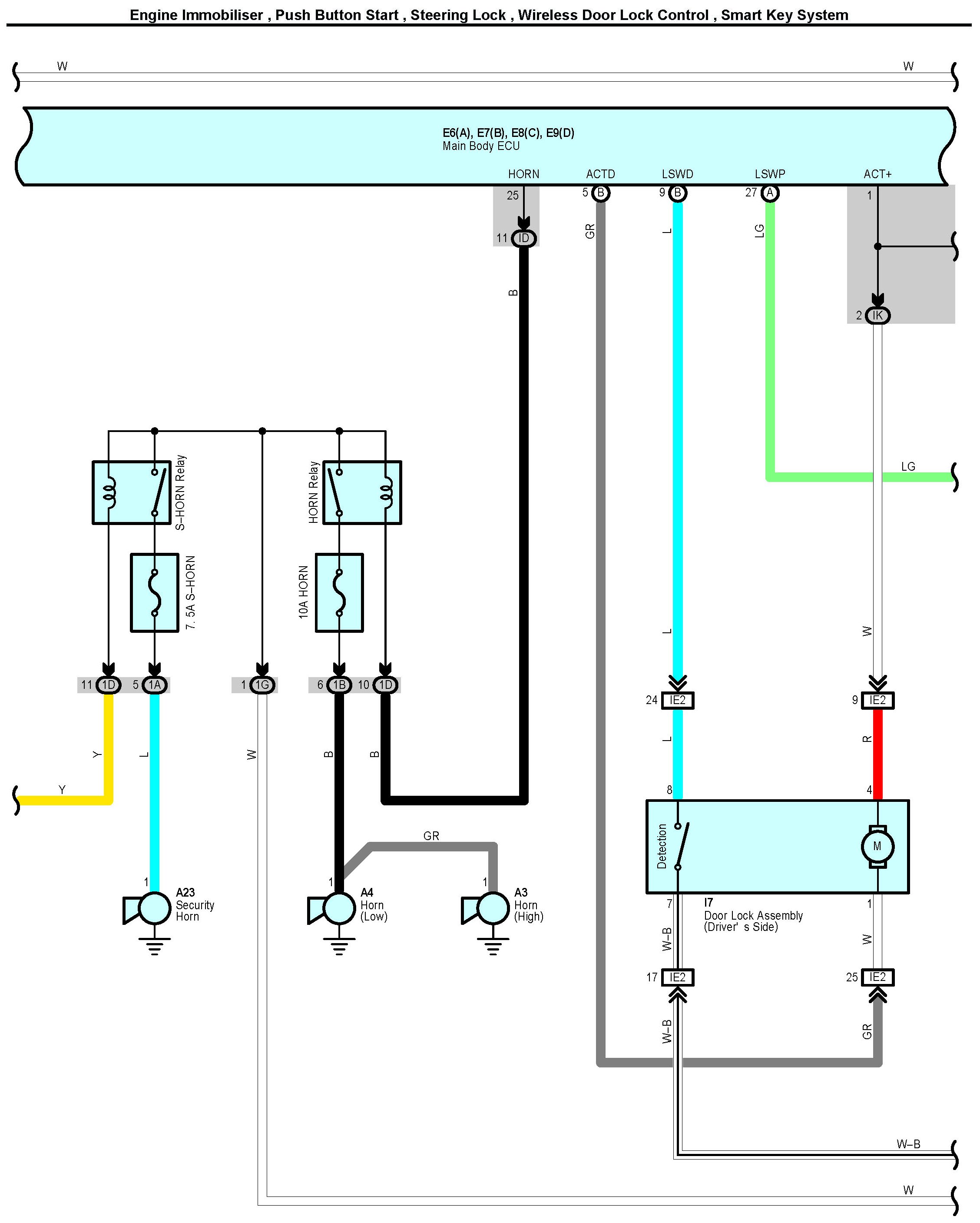

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System

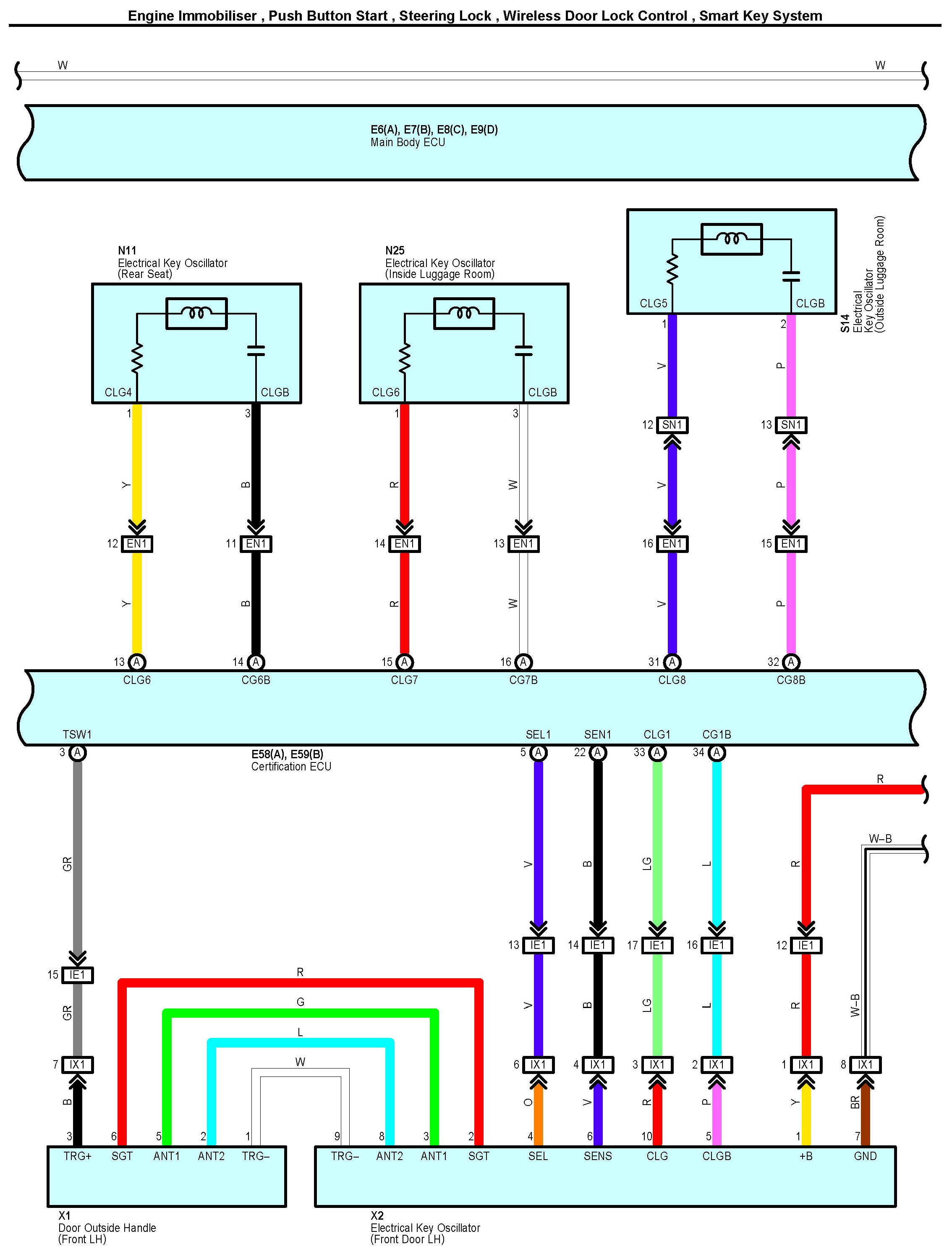

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 1:

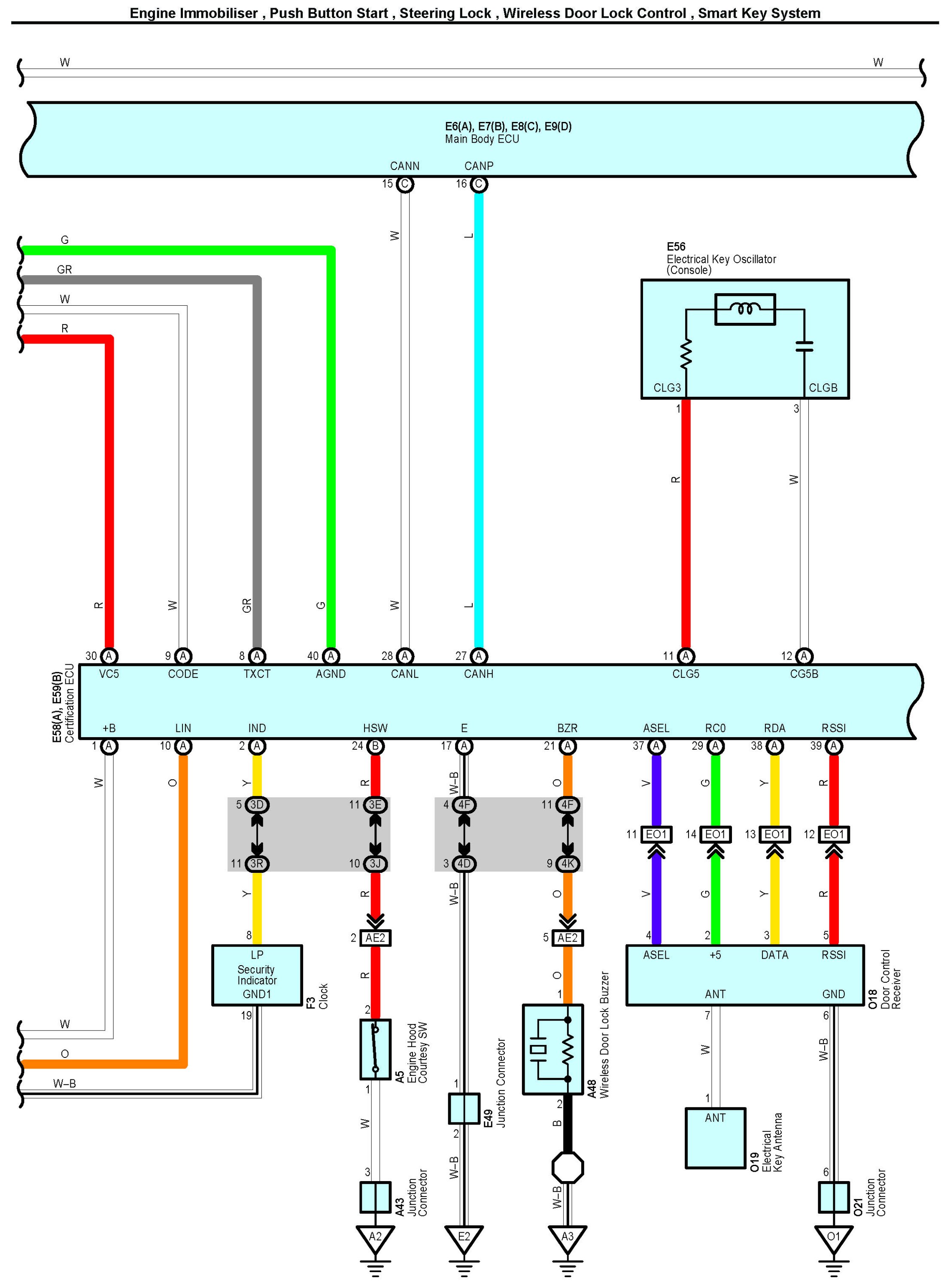

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 2:

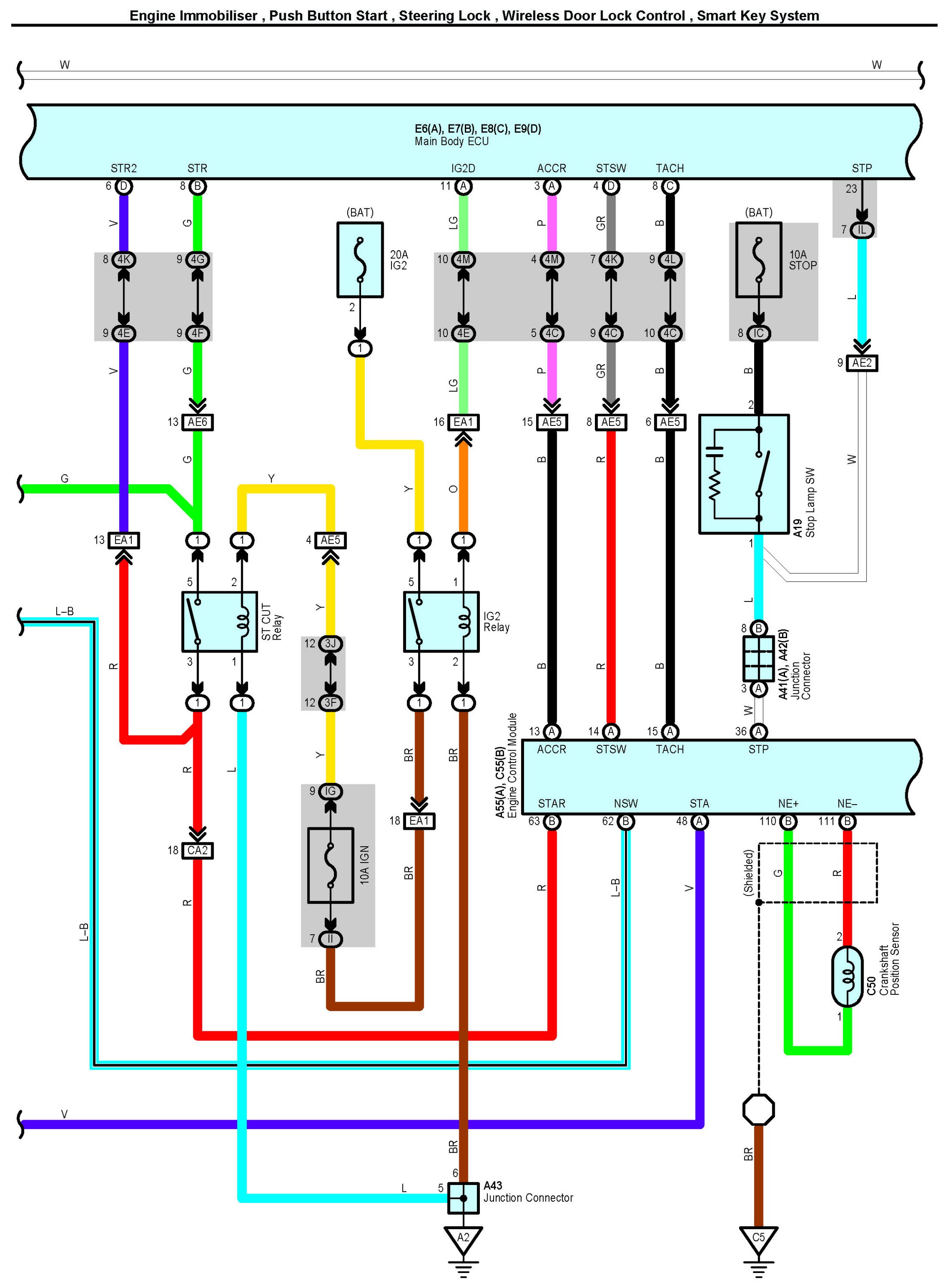

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 3:

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 4:

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 5:

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 6:

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 7:

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 8:

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 9:

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 10:

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 11:

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 12:

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 13:

Engine Immobiliser, Push Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 14:

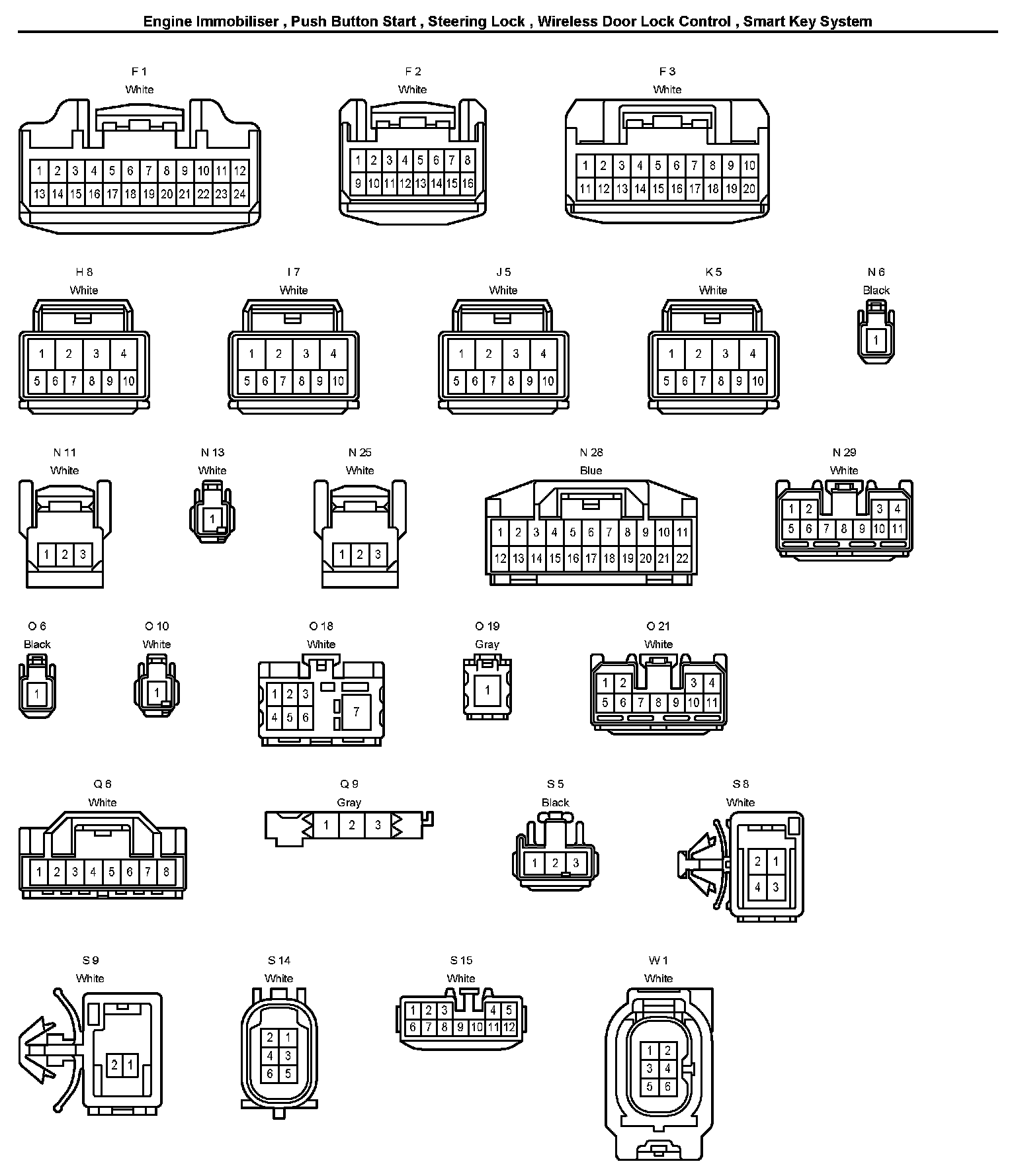

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Connectors Part 7:

Connectors Part 8:

Connectors Part 9:

Connectors Part 10:

Connectors Part 11:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
