Installation
P311 HYBRID VEHICLE CONTROL: FRONT CIRCUIT BREAKER SENSOR: INSTALLATIONINSTALLATION 1.
INSTALL NO. 1 CIRCUIT BREAKER SENSOR
(a)

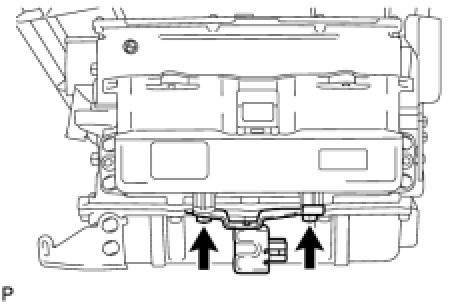

Install the No. 1 circuit breaker sensor to the inverter with converter with the 2 bolts.
Torque: 8.5 Nm (87 kgf-cm, 75in-lbf) 2.
INSTALL INVERTER WITH CONVERTER
Installation
