ECU Power Source Circuit








THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILISER SYSTEM (w/o Smart Key System): ECU Power Source Circuit

ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the transponder key ECU assembly.

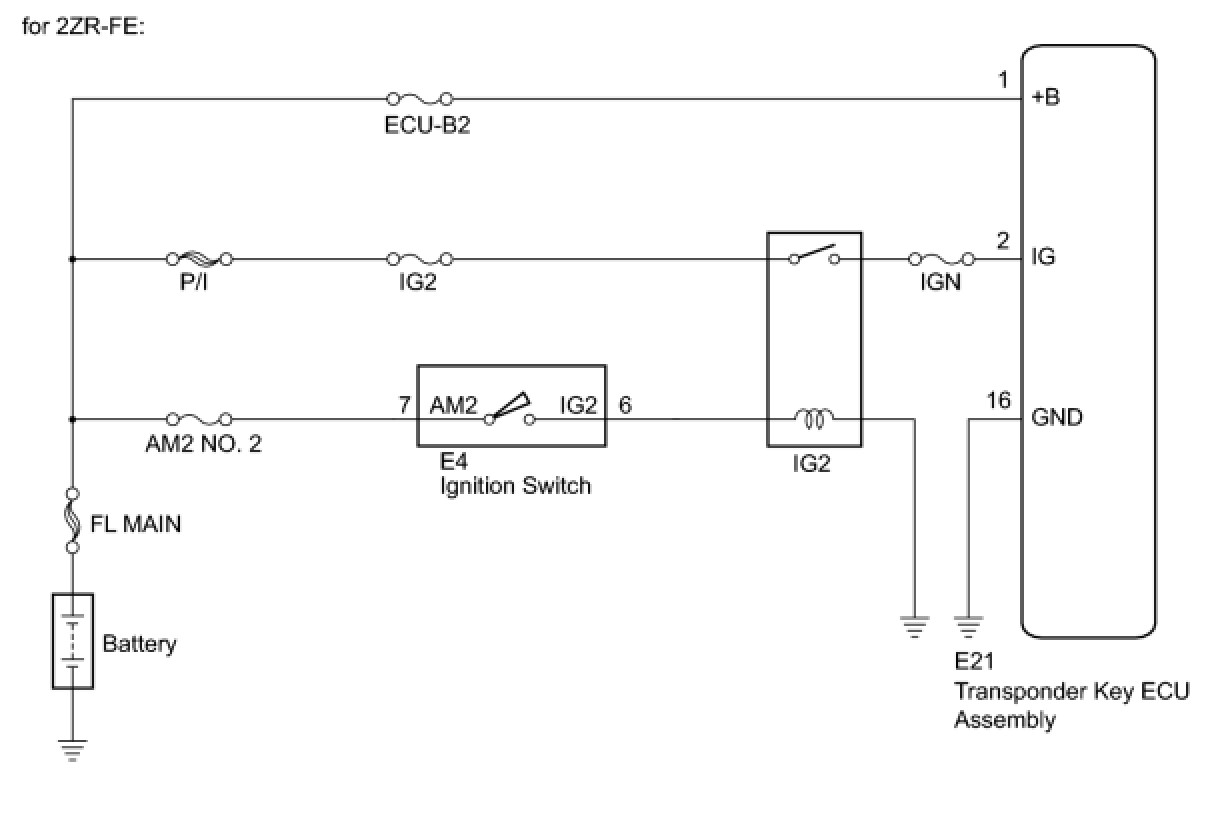

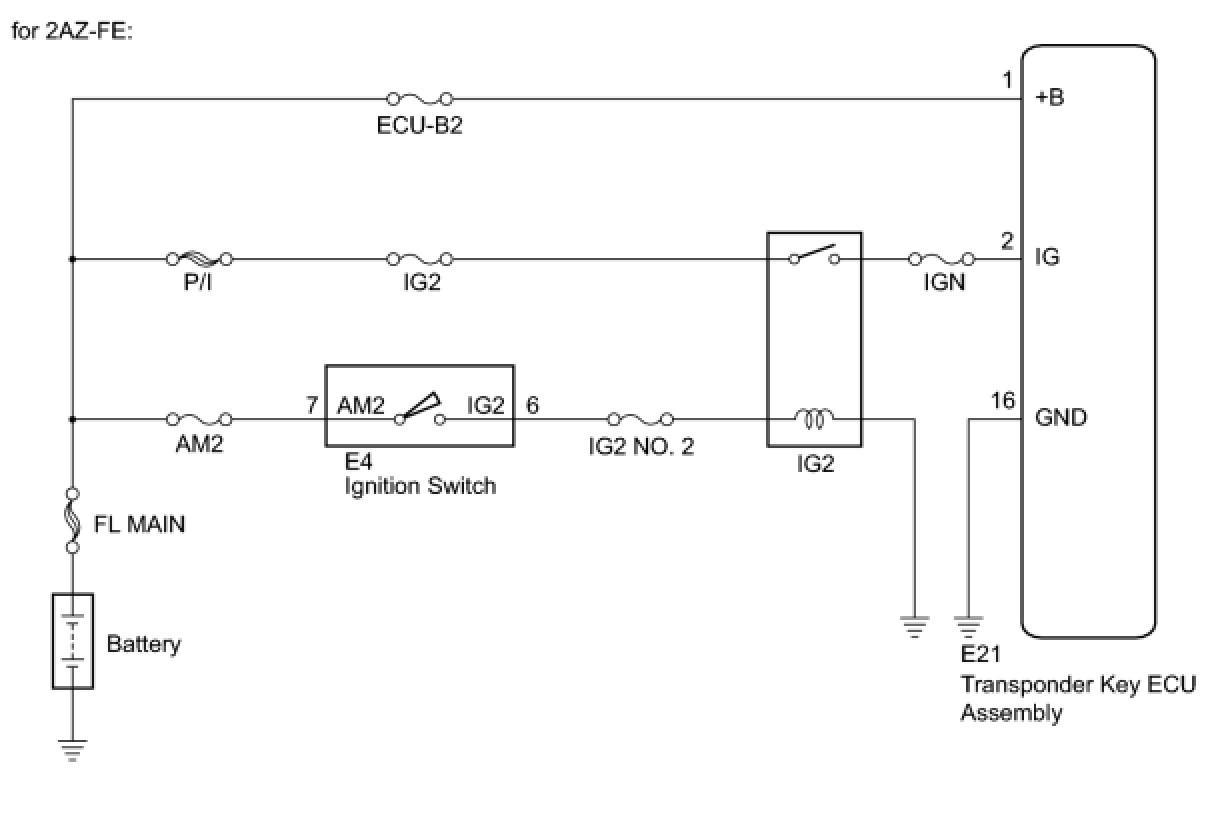

WIRING DIAGRAM









INSPECTION PROCEDURE
NOTE: If the transponder key ECU assembly is replaced, register the key and ECU communication ID Engine Immobiliser System (W/O Smart Key System).

PROCEDURE

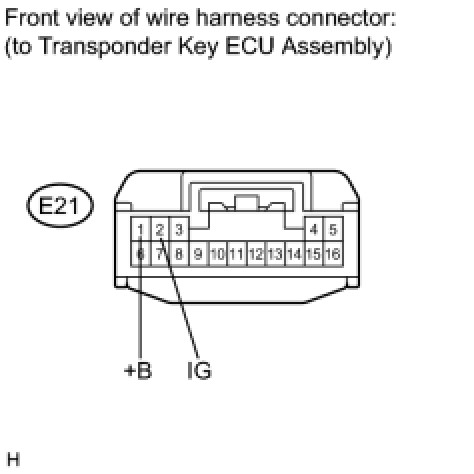

1. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU - BATTERY)




(a) Disconnect the transponder key ECU assembly connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR, OR REPLACE FUSE
OK -- Continue to next step.

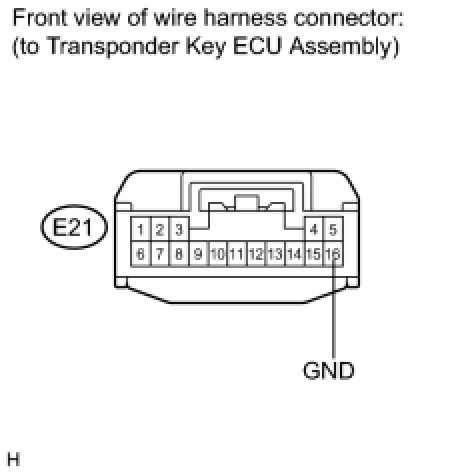

2. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU - BODY GROUND)




(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
