Installation








SEAT: SEAT HEATER SWITCH: INSTALLATION

INSTALLATION

1. INSTALL SEAT HEATER SWITCH

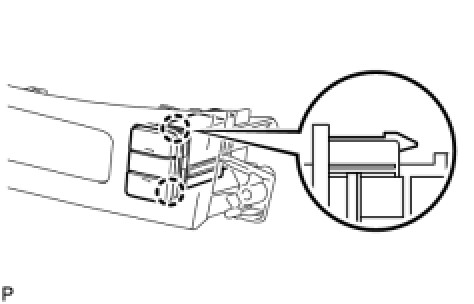

(a) Engage the 2 claws and install the seat heater switch.
2. INSTALL INSTRUMENT PANEL HOLE COVER Installation
3. INSTALL INSTRUMENT PANEL BOX ASSEMBLY Installation
4. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) Installation
5. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) Installation
6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Installation
8. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH Installation
9. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH Installation
