Removal

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: STEERING ANGLE SENSOR (w/ VSC): REMOVAL

REMOVAL

1. PRECAUTION
CAUTION: Be sure to read Precaution throughly before servicing Service Precautions

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system Service Precautions.

3. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
4. REMOVE LOWER NO. 3 STEERING WHEEL COVER Removal
5. REMOVE LOWER NO. 2 STEERING WHEEL COVER Removal
6. REMOVE STEERING PAD Removal
7. REMOVE STEERING WHEEL ASSEMBLY Removal
8. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal
9. REMOVE LOWER STEERING COLUMN COVER Removal
10. REMOVE UPPER STEERING COLUMN COVER Removal
11. REMOVE SPIRAL CABLE WITH STEERING ANGLE SENSOR Removal
12. REMOVE STEERING ANGLE SENSOR

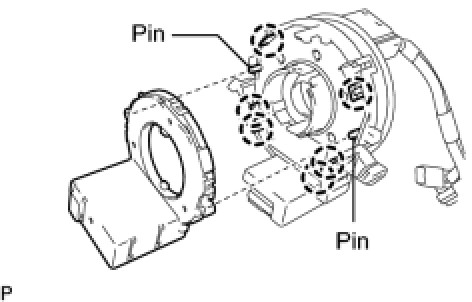

(a) Disengage the 6 claws and 2 pins, and remove the steering angle sensor from the spiral cable.
