Installation

EXTERIOR: RADIATOR GRILLE: INSTALLATION

INSTALLATION

1. INSTALL LOWER RADIATOR GRILLE MOULDING LH (w/ Plated Moulding)

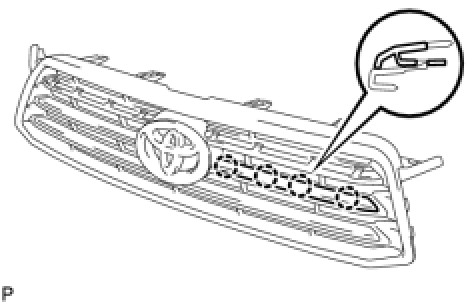

(a) Engage the 4 claws and install the lower radiator grille moulding LH.
2. INSTALL LOWER RADIATOR GRILLE MOULDING RH (w/ Plated Moulding)
HINT: Use the same procedure for the RH side and LH side.

3. INSTALL CENTER RADIATOR GRILLE MOULDING LH (w/ Plated Moulding)





(a) Engage the 4 claws and install the center radiator grille moulding LH.
4. INSTALL CENTER RADIATOR GRILLE MOULDING RH (w/ Plated Moulding)
HINT: Use the same procedure for the RH side and LH side.

5. INSTALL UPPER RADIATOR GRILLE MOULDING LH (w/ Plated Moulding)

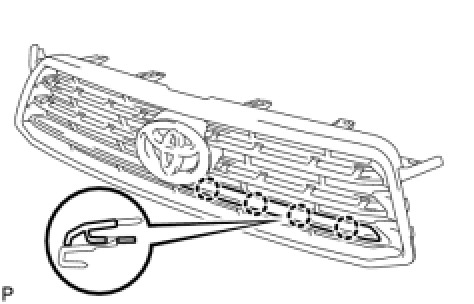

(a) Engage the 4 claws and install the upper radiator grille moulding LH.
6. INSTALL UPPER RADIATOR GRILLE MOULDING RH (w/ Plated Moulding)
HINT: Use the same procedure for the RH side and LH side.

7. INSTALL INSIDE RADIATOR GRILLE (w/ Plated Moulding)

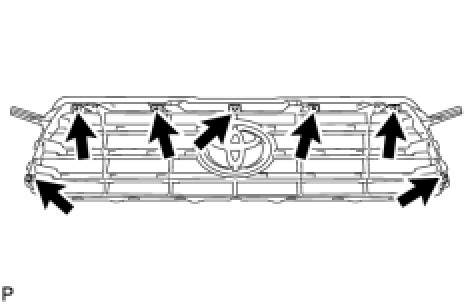

(a) Engage the 9 claws and install the inside radiator grille.





(b) Install the 7 screws.
8. INSTALL RADIATOR GRILLE EMBLEM

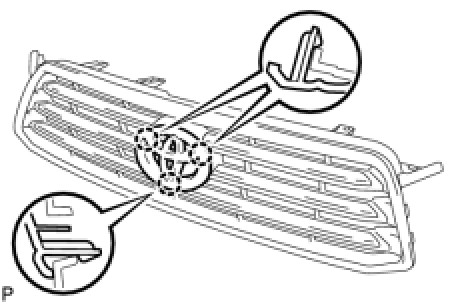

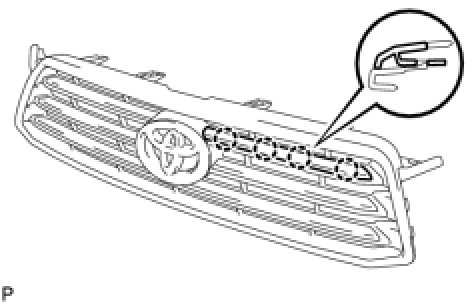

(a) Engage the 3 claws and install the radiator grille emblem.
9. INSTALL RADIATOR GRILLE

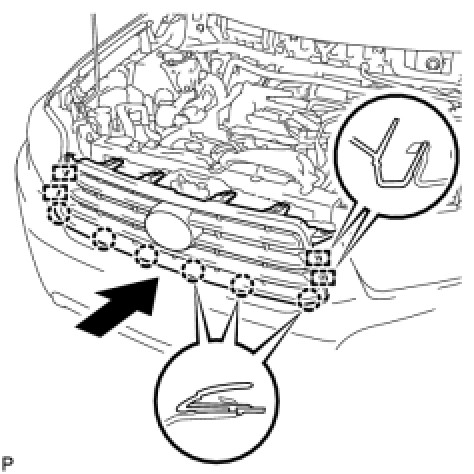

(a) Engage the 4 guides and 6 claws, and install the radiator grille.

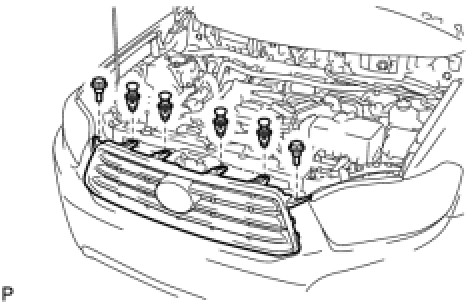

(b) Install the 4 clips and 2 bolts.

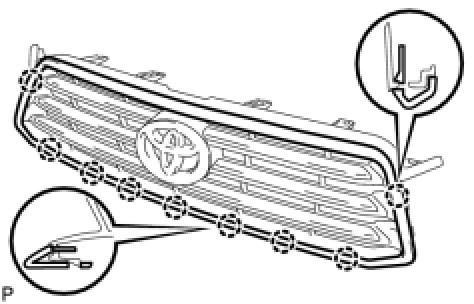

10. INSTALL COOL AIR INTAKE DUCT SEAL

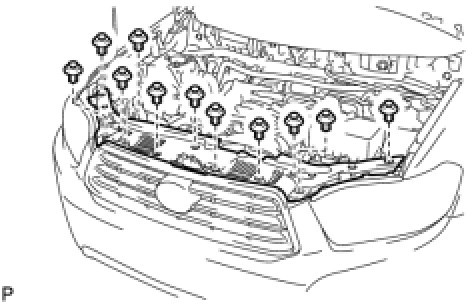

(a) Install the cool air intake duct seal with the 11 clips.
