Installation








TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: INSTALLATION

INSTALLATION

1. INSTALL TIRE PRESSURE WARNING ECU

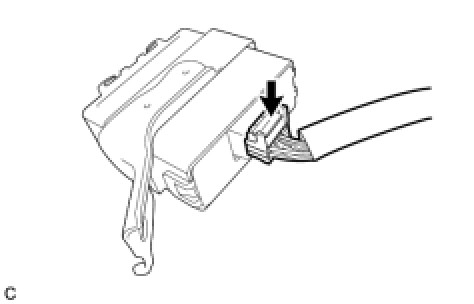

(a) Connect the connector to the tire pressure warning ECU.

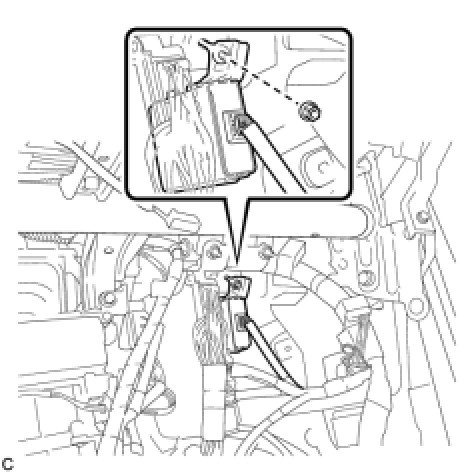

(b) Install the tire pressure warning ECU with the nut.
Torque: 8.5 Nm (87 kgf-cm, 75 in-lbf)
2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation
3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation
5. INSTALL FRONT DOOR SCUFF PLATE RH Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

7. REGISTER TRANSMITTER ID
HINT: Registration.

8. INSPECT TIRE PRESSURE WARNING SYSTEM
HINT: Test Mode Procedure.

9. INITIALIZE SYSTEM
NOTICE:
- Be sure to register the transmitter IDs of all tires in the ECU before initialization.
- Be sure to inflate all tires to the proper inflation pressure before initialization.
HINT: Initialization.
