Installation








1AR-FE CHARGING: GENERATOR: INSTALLATION

INSTALLATION

1. INSTALL GENERATOR ASSEMBLY

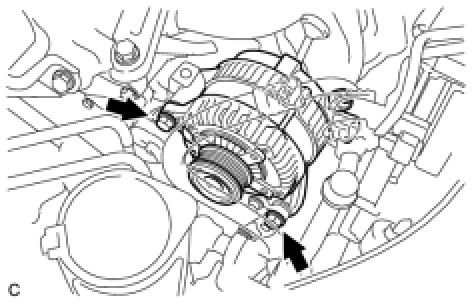

(a) Install the generator with the 2 bolts.
Torque: 52 Nm (530 kgf-cm, 38 ft-lbf)

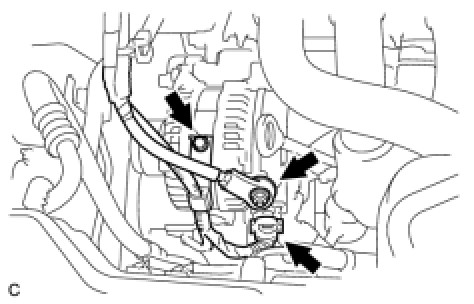

(b) Install the wire harness clamp bracket with the bolt.
Torque: 8.4 Nm (86 kgf-cm, 74 in-lbf)
(c) Connect the generator wire with the nut.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
(d) Install the terminal cap.
(e) Connect the generator connector.
2. INSTALL V-RIBBED BELT
(a) Install the belt Installation.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
