Installation








1AR-FE STARTING: STARTER: INSTALLATION

INSTALLATION

1. INSTALL STARTER ASSEMBLY

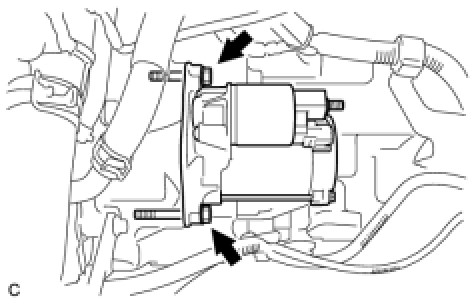

(a) Install the starter with the 2 bolts.
Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)





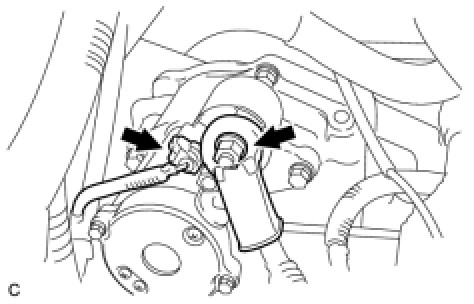

(b) Connect the starter connector.
(c) Install the terminal nut and cover the nut with the cap.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
2. INSTALL NO. 1 INLET AIR CLEANER Installation
3. INSTALL AIR CLEANER BRACKET Installation
4. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation
5. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY Installation
6. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
7. INSTALL NO. 2 INLET AIR CLEANER Installation
8. INSTALL BATTERY Installation
9. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
10. INSTALL COOL AIR INTAKE DUCT SEAL Installation
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
