P310 HYBRID VEHICLE CONTROL: FRONT CIRCUIT BREAKER SENSOR: INSTALLATION

INSTALLATION

1. INSTALL NO. 1 CIRCUIT BREAKER SENSOR

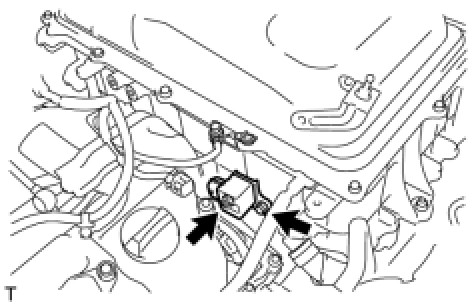

(a) Install the No. 1 circuit breaker sensor with the 2 bolts to the inverter with converter assembly.
Torque: 8.0 Nm (82 kgf-cm, 70 in-lbf)

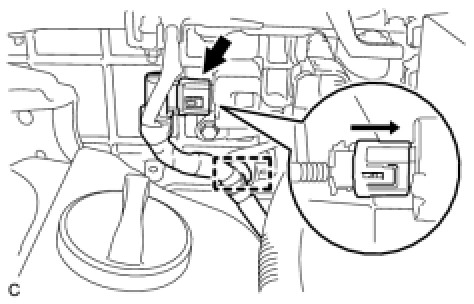

(b) Connect the connector to the No. 1 circuit breaker sensor.
(c) Connect the clamp.

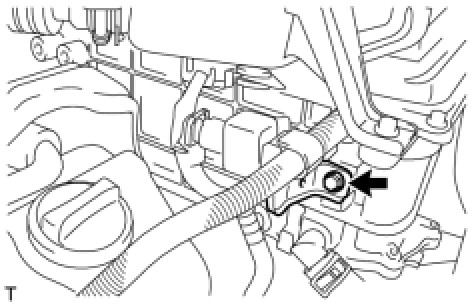

(d) Install the bracket with the bolt.
Torque: 7.0 Nm (71 kgf-cm, 62 in-lbf)
2. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
3. INSTALL COOL AIR INTAKE DUCT SEAL Installation
4. INSTALL NO. 2 ENGINE ROOM SIDE COVER LH Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
