3MZ-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
(a) Install a new gasket onto the engine coolant temperature sensor.

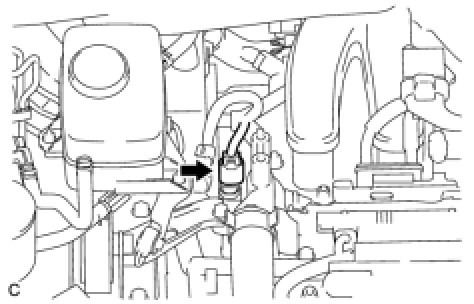

(b) Install the engine coolant temperature sensor.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(c) Connect the engine coolant temperature sensor connector.
2. INSTALL AIR CLEANER BRACKET Installation
3. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation
4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
5. INSTALL NO. 2 ENGINE ROOM SIDE COVER LH Installation
6. INSTALL COOL AIR INTAKE DUCT SEAL Installation
7. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY Installation
8. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY Installation
9. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
10. INSTALL HOOD TO COWL TOP SEAL Installation
11. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
12. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
