Installation

3MZ-FE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSOR: INSTALLATION

INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR (for Bank 2)
(a) Temporarily tighten the air fuel ratio sensor to the exhaust manifold sub-assembly LH.
NOTE: Do not damage the air fuel ratio sensor.

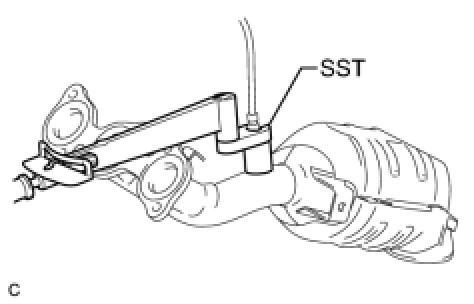

(b) Using SST, fully tighten the air fuel ratio sensor to the exhaust manifold sub-assembly LH.
SST: 09224-00010
Torque: 44 Nm (449 kgf-cm, 33 ft-lbf)
Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)
HINT:
- Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
- Make sure that SST and the wrench are connected in a straight line.

(c) Connect the air fuel ratio sensor connector and clamp.
2. INSTALL AIR FUEL RATIO SENSOR (for Bank 1)
(a) Temporarily tighten the air fuel ratio sensor to the exhaust manifold sub-assembly RH.
NOTE: Do not damage the air fuel ratio sensor.





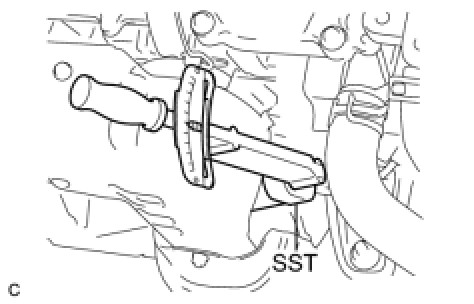

(b) Using SST, fully tighten the air fuel ratio sensor to the exhaust manifold sub-assembly RH.
SST: 09224-00010
Torque: 44 Nm (449 kgf-cm, 33 ft-lbf)
Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)
HINT:
- Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
- Make sure that SST and the wrench are connected in a straight line.

(c) Connect the air fuel ratio sensor connector.
3. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH
HINT: Installation.
