Installation








3MZ-FE ENGINE CONTROL SYSTEM: CAMSHAFT OIL CONTROL VALVE: INSTALLATION

INSTALLATION

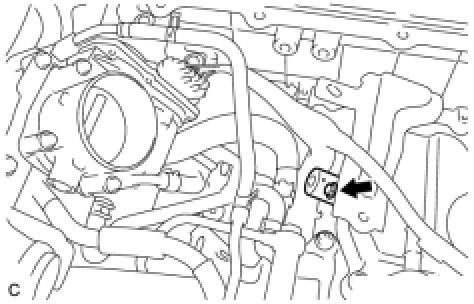

1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY LH
(a) Apply a coat of engine oil to an O-ring of the oil control valve.





(b) Install the camshaft timing oil control valve with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
(c) Connect the camshaft timing oil control valve connector.

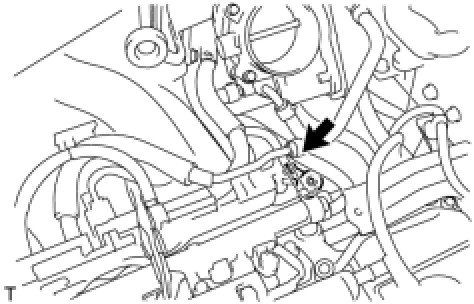

2. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY RH
(a) Apply a coat of engine oil to an O-ring of the oil control valve.





(b) Install the camshaft timing oil control valve with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
Connect the camshaft timing oil control valve connector.
3. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation
4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
5. INSTALL NO. 2 ENGINE ROOM SIDE COVER LH Installation
6. INSTALL COOL AIR INTAKE DUCT SEAL Installation
7. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY Installation
8. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY Installation
9. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
10. INSTALL HOOD TO COWL TOP SEAL Installation
11. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
12. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
