3MZ-FE IGNITION: IGNITION COIL AND SPARK PLUG: INSTALLATION

INSTALLATION

1. INSTALL SPARK PLUG

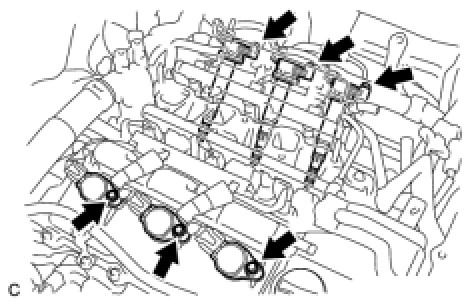

(a) Install the 6 spark plugs.
Torque: 18 Nm (183 kgf-cm, 13 ft-lbf)
2. INSTALL IGNITION COIL ASSEMBLY

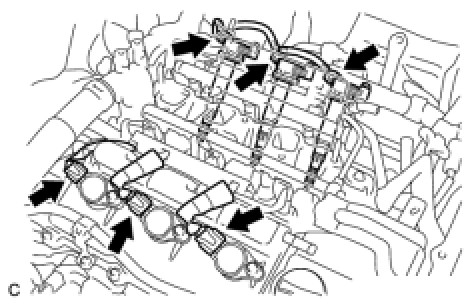

(a) Install the 6 ignition coils with the 6 bolts.
Torque: 8.0 Nm (80 kgf-cm, 71 in-lbf)





(b) Connect the 6 ignition coil connectors.
3. INSTALL INTAKE AIR SURGE TANK Installation
4. INSTALL EMISSION CONTROL VALVE SET Installation
5. INSTALL AIR CLEANER BRACKET Installation
6. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation
7. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
8. ADD ENGINE COOLANT (for Engine) Service and Repair
9. INSTALL NO. 2 ENGINE ROOM SIDE COVER LH Installation
10. INSTALL COOL AIR INTAKE DUCT SEAL Installation
11. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY Installation
12. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY Installation
13. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
14. INSTALL HOOD TO COWL TOP SEAL Installation
15. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Service Precautions.

18. INSPECT FOR COOLANT LEAK (for Engine) Testing and Inspection
