Installation
3MZ-FE COOLING: COOLING FAN ECU: INSTALLATIONINSTALLATION 1.
INSTALL COOLING FAN ECU
(a)

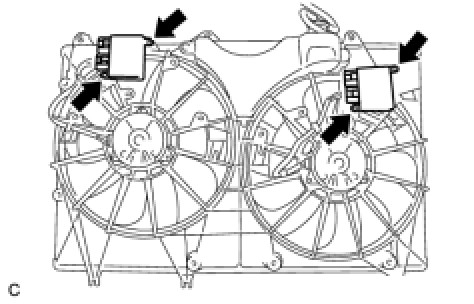

Install the 2 ECUs with the 4 screws.
Torque: 2.6 Nm (27 kgf-cm, 23 in-lbf) 2.
CONNECT COOLING FAN MOTOR CONNECTORS
Installation 3.
INSTALL FAN ASSEMBLY WITH MOTOR
Installation 4.
INSTALL RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR
HINT: Installation.
