Intake Manifold

INTAKE MANIFOLD





Install the intake manifold with the 9 bolts, 2 nuts and 2 washers. Using several steps, tighten the bolts and nuts uniformly in the sequence shown in the illustration.

Torque 15 Nm (153 kgf-cm, 11 ft-lbf)





(b) Using a socket hexagon wrench 8 mm, install the intake air surge tank with the 4 bolts and 2 nuts. Using several steps, tighten the bolts and nuts uniformly in the sequence shown in the illustration.
Torque: 28 Nm (286 kgf-cm, 21 ft-lbf)

THROTTLE BODY ASSEMBLY

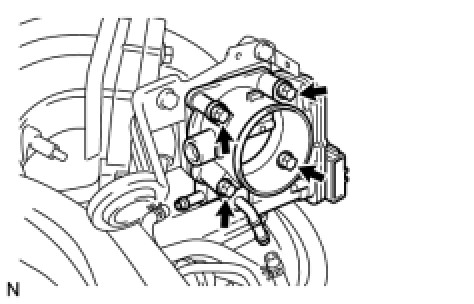

Install the throttle body assembly with the 4 bolts.

Torque 11 Nm (112 kgf-cm, 8 ft-lbf)
