Cylinder Head

CYLINDER HEAD SUB-ASSEMBLY

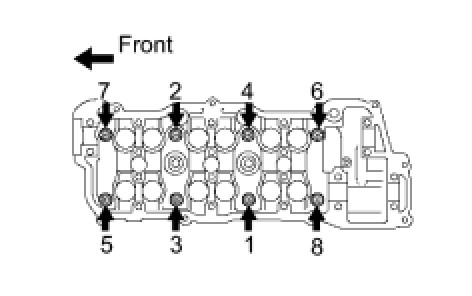

Using several steps, install and tighten the 8 cylinder head bolts uniformly in the sequence shown in the illustration.
Torque 54 Nm (550 kgf-cm, 40 ft-lbf)

The cylinder head bolts are tightened in 2 successive steps.

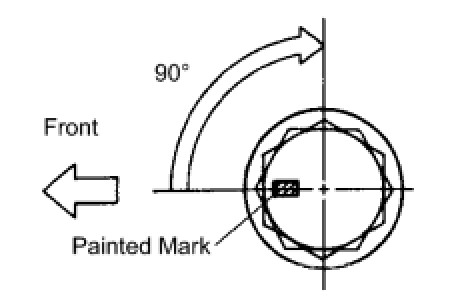

Mark the front side of each cylinder head bolt head with paint as shown in the illustration.
Retighten the cylinder head bolts by 90° in the same sequence as step .
Check that each painted mark is now at a 90° angle to the front.

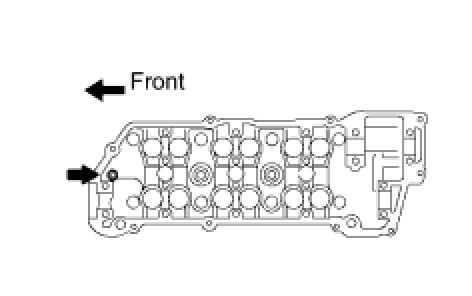

Using an 8 mm socket hexagon wrench, install the hexagon bolt.
Torque 19 Nm (194 kgf-cm, 14 ft-lbf)

CYLINDER HEAD LH

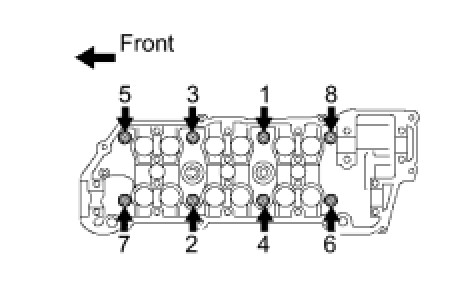

Using several steps, install and tighten the 8 cylinder head bolts uniformly in the sequence shown in the illustration.
Torque 54 Nm (551 kgf-cm, 40 ft-lbf)

The cylinder head bolts are tightened in 2 successive steps.





Mark the front side of each cylinder head bolt head with paint as shown in the illustration.
Retighten the cylinder head bolts by 90° in the same sequence as step.
Check that each painted mark is now at a 90° angle to the front.

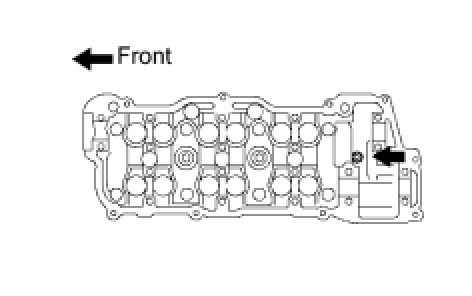

Using an 8 mm socket hexagon wrench, install the hexagon bolt.
Torque 19 Nm (189 kgf-cm, 14 ft-lbf)
