System Specifications

NO. 1 TIMING BELT COVER





Install the timing belt cover with the 4 bolts.
Torque 8.5 Nm (87 kgf-cm, 75 in-lbf)

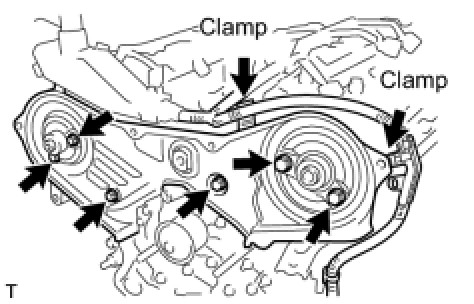

NO. 2 TIMING BELT COVER





Install the timing belt cover with the 5 bolts.
Torque 8.5 Nm (87 kgf-cm, 75 in-lbf)

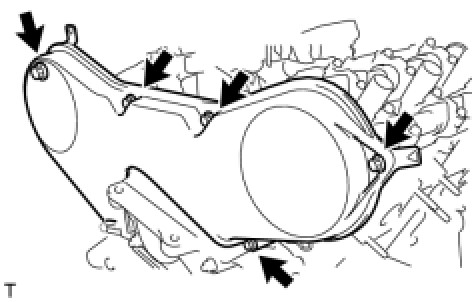

NO. 3 TIMING BELT COVER





Install the timing belt cover No. 3 with the 6 bolts.
Torque 9.0 Nm (92 kgf-cm, 80 in-lbf)

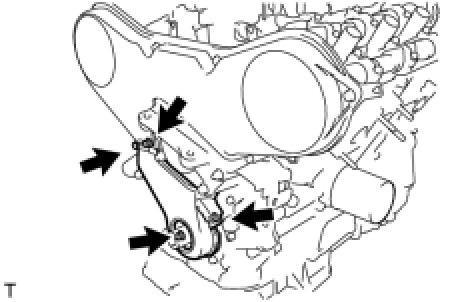

NO. 1 CHAIN TENSIONER ASSEMBLY





Temporarily install the tensioner with the 2 bolts. Alternately tighten the 2 bolts.
Torque 27 Nm (275 kgf-cm, 20 ft-lbf)

CRANKSHAFT PULLEY

Torque 220 Nm (2243 kgf-cm, 162 ft-lbf)
