Installation








3MZ-FE STARTING: POWER SWITCH: INSTALLATION

INSTALLATION

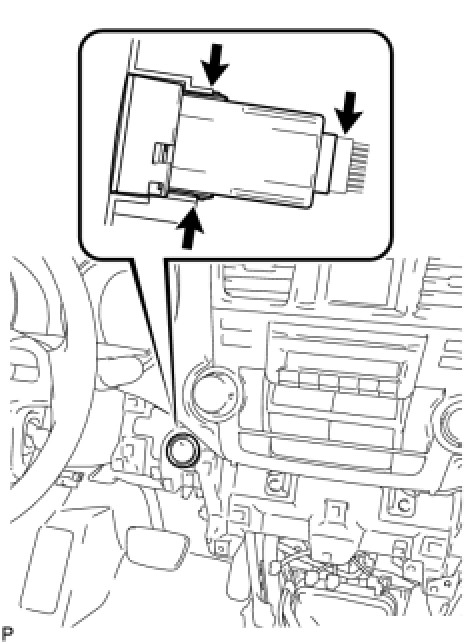

1. INSTALL POWER SWITCH





(a) Engage the 2 claws to install the switch.
(b) Connect the switch connector.
2. INSTALL FRONT NO. 1 CONSOLE BOX INSERT Installation
3. INSTALL CONSOLE BOX ASSEMBLY (w/o Rear Air Conditioning System) Installation
4. INSTALL CONSOLE BOX ASSEMBLY (w/ Rear Air Conditioning System) Installation
5. INSTALL LOWER REAR CONSOLE BOX Installation
6. INSTALL NO. 2 CONSOLE BOX DUCT (w/o Rear Air Conditioning System) Installation
7. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
8. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation
9. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation
10. INSTALL FRONT DOOR SCUFF PLATE LH Installation
11. INSTALL HEATER CONTROL AND ACCESSORY ASSEMBLY (for Manual Air Conditioning System) Installation
12. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System) Installation
13. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Installation
14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
