Installation
DOOR LOCK: BACK DOOR LOCK: INSTALLATIONINSTALLATION 1.
INSTALL BACK DOOR LOCK ASSEMBLY
(a)

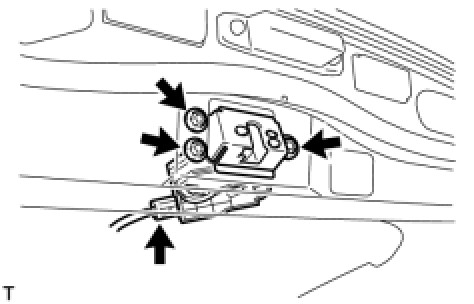

Install the door lock with the 3 bolts.
Torque: 13 Nm (133 kgf-cm, 10 ft-lbf) (b)
Connect the connector.
2.
INSTALL BACK DOOR LOCK COVER
(a)

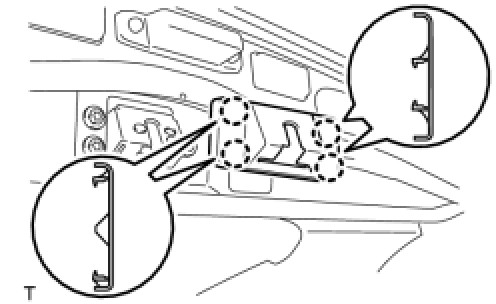

Attach the 4 claws to install the cover.
3.
INSTALL BACK DOOR GARNISH
4.
INSTALL BACK DOOR SIDE GARNISH RH
5.
INSTALL BACK DOOR SIDE GARNISH LH
6.
INSTALL CENTER BACK DOOR GARNISH
