Installation








BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: CRAWL SWITCH: INSTALLATION

INSTALLATION

1. INSTALL CRAWL SWITCH

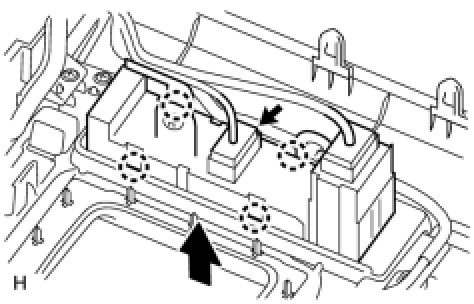

(a) Attach the 4 claws to install the suspension control switch (CRAWL switch).
(b) Connect the connector.
2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
3. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY Installation
4. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
5. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation
6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
7. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH Installation
8. INSTALL NO. 1 INSTRUMENT PANEL FINISH CUSHION Installation
9. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation
10. INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION Installation
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
