Installation

HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL (w/ Multi-display): INSTALLATION

INSTALLATION

1. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET
(a) Connect the connectors.

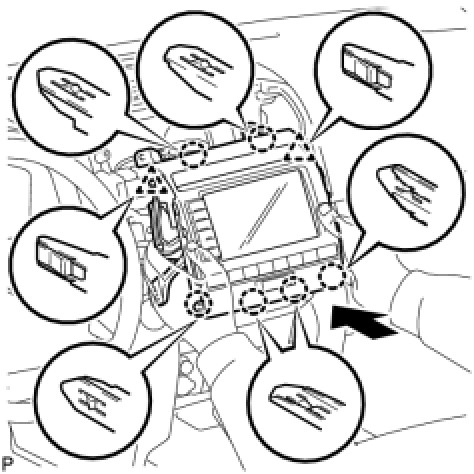

(b) Insert the radio receiver and attach the 8 claws on its backside.
NOTE: When inserting the radio receiver, do not press the knobs on it.

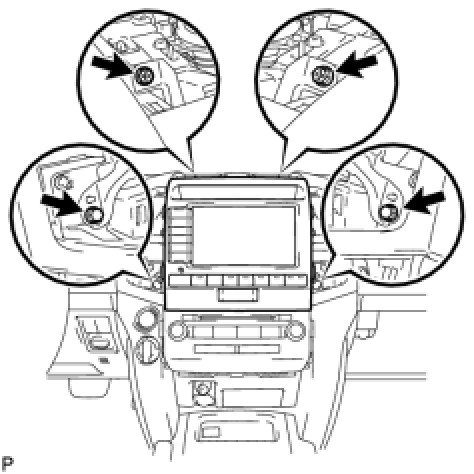

(c) Install the radio receiver with the 4 bolts.
2. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
3. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
4. INSTALL NO. 1 SPEAKER OPENING COVER ASSEMBLY Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
