Removal

HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL (w/ Multi-display): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY Removal
3. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Removal
4. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY Removal
5. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET





(a) Remove the 4 bolts.

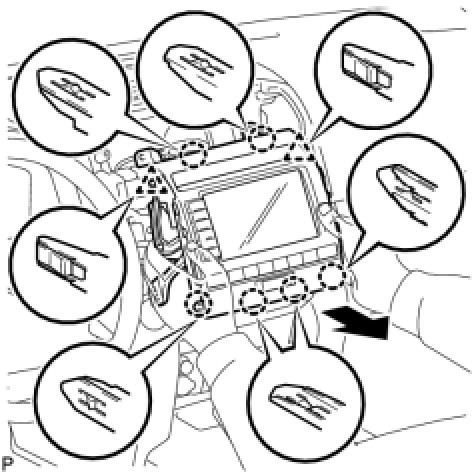

(b) Pull the radio receiver to detach the 8 claws on the backside of the radio receiver.
(c) Disconnect the connectors and remove the radio receiver.
