Installation








TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING ECU: INSTALLATION

INSTALLATION

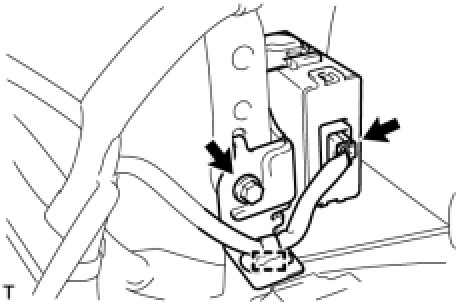

1. INSTALL TIRE PRESSURE WARNING ECU





(a) Install the ECU with the bolt.
Torque: 7.5 Nm (77 kgf-cm, 66 in-lbf)
(b) Connect the ECU connector and attach the clamp.
2. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH Installation
3. INSTALL REAR SEAT COVER CAP Installation
4. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Installation
5. INSTALL REAR FLOOR MAT REAR SUPPORT PLATE Installation
6. INSTALL REAR DOOR SCUFF PLATE RH Installation
7. INSTALL REAR STEP COVER Installation
8. INSTALL REAR NO. 2 SEAT ASSEMBLY
(a) Install the rear No. 2 seat assembly Installation.
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
10. PERFORM REGISTRATION
(a) Perform registration Registration.
11. PERFORM SYSTEM INITIALIZE
(a) Perform system initialize Initialization.
12. CHECK TIRE PRESSURE AFTER REPAIRS
(a) After repairs, confirm that the actual tire pressures are displayed in the Data List Data List / Active Test.
