Oil Pan, Engine

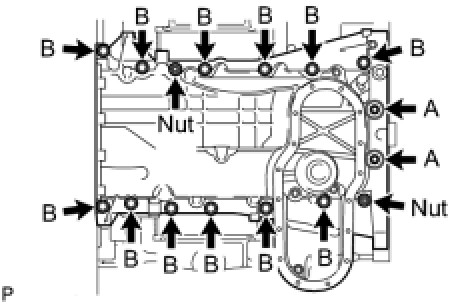

NO. 1 OIL PAN SUB-ASSEMBLY Install the
oil pan with the 14 bolts and 2 nuts.
for bolt A - Torque
10 Nm (102 kgf-cm, 7 ft-lbf)
for bolt B - Torque
35 Nm (357 kgf-cm, 26 ft-lbf)
for nut - Torque
35 Nm (357 kgf-cm, 26 ft-lbf)

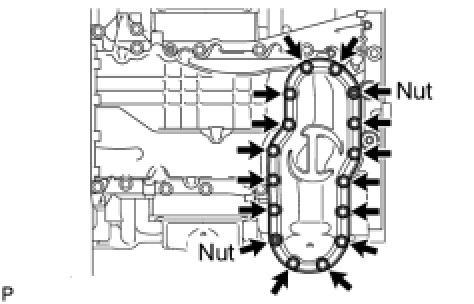

Standard Bolt:NO. 2 OIL PAN SUB-ASSEMBLYInstall the
oil pan with the 14 bolts and 2 nuts.
Torque
10 Nm (102 kgf-cm, 7 ft-lbf)
