Installation
WINDOW / GLASS: POWER WINDOW MASTER SWITCH: INSTALLATIONINSTALLATION 1.
INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
(a)

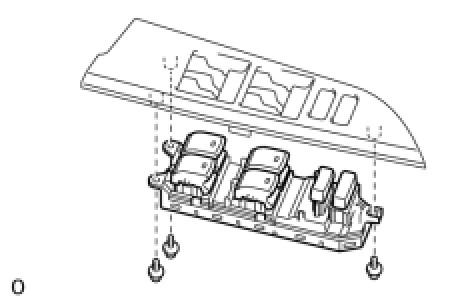

Install the master switch with the 3 screws.
2.
INSTALL FRONT DOOR ARMREST BASE PANEL ASSEMBLY LH
(a)
Connect the connector.
(b)

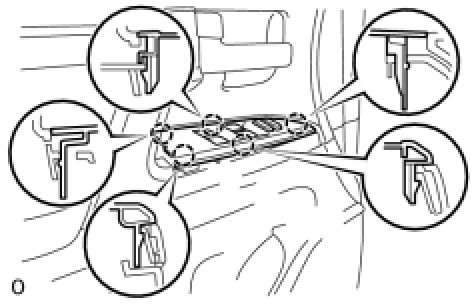

Attach the 5 claws to install the armrest base panel.
