Computers and Control Systems: Description and Operation

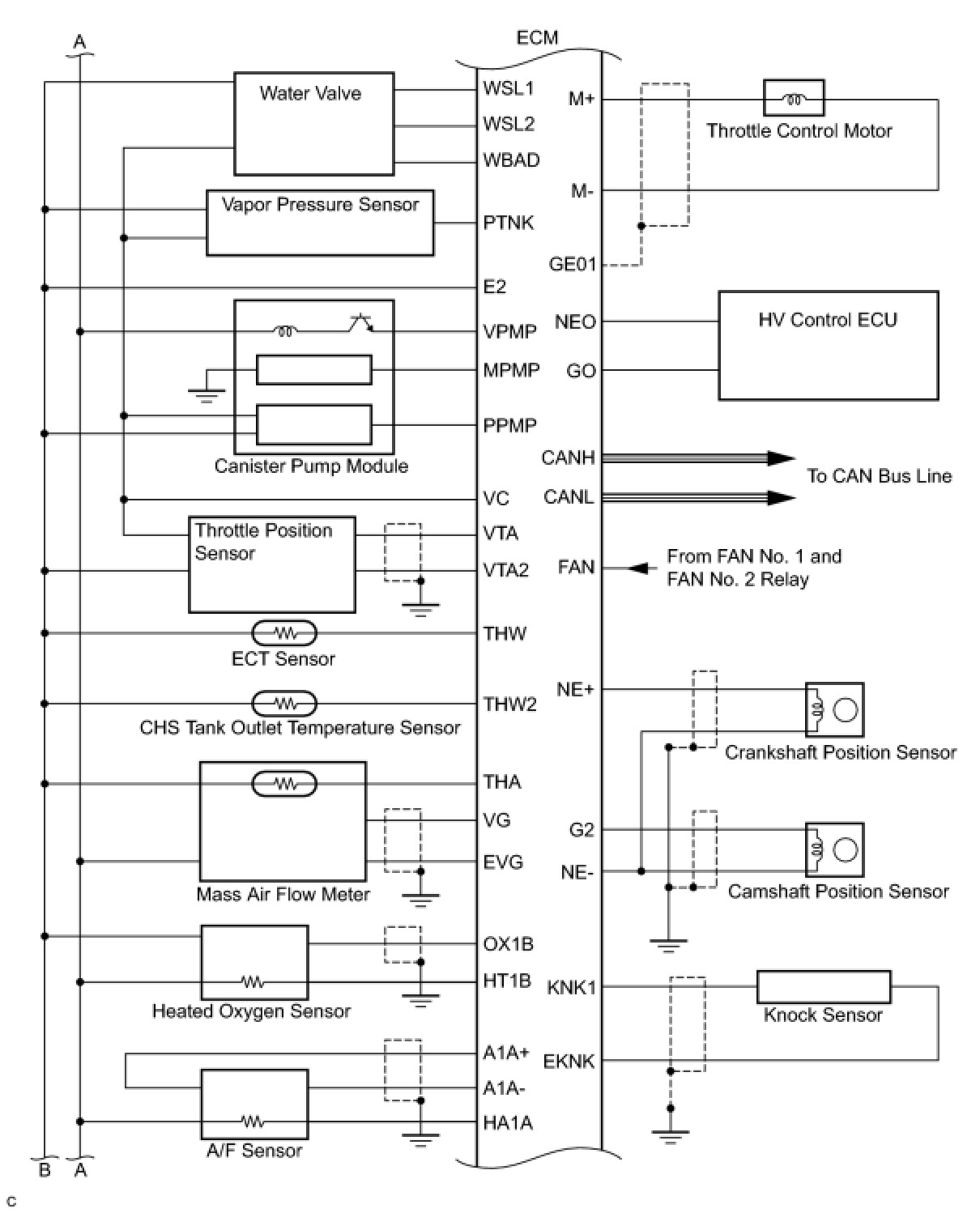

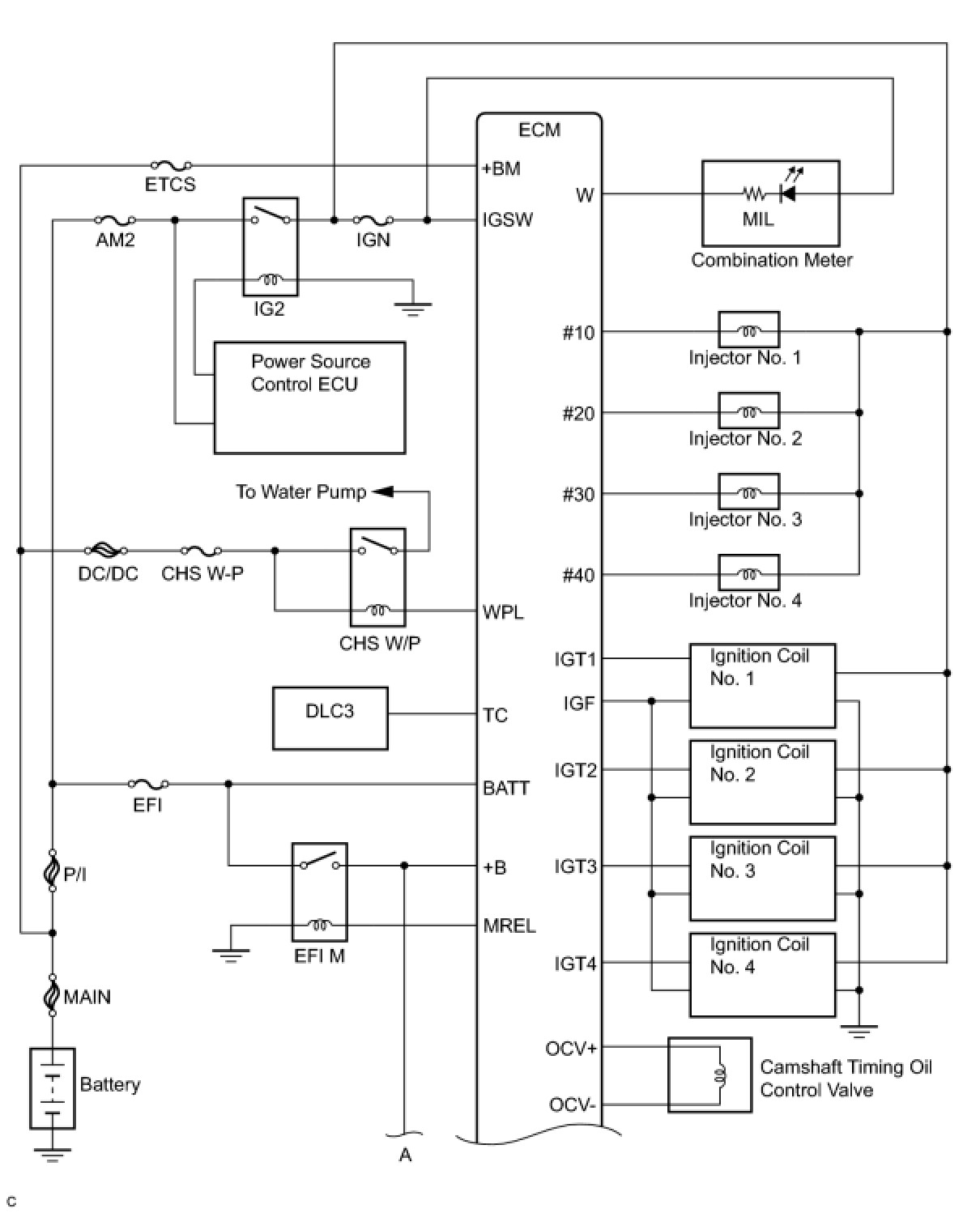

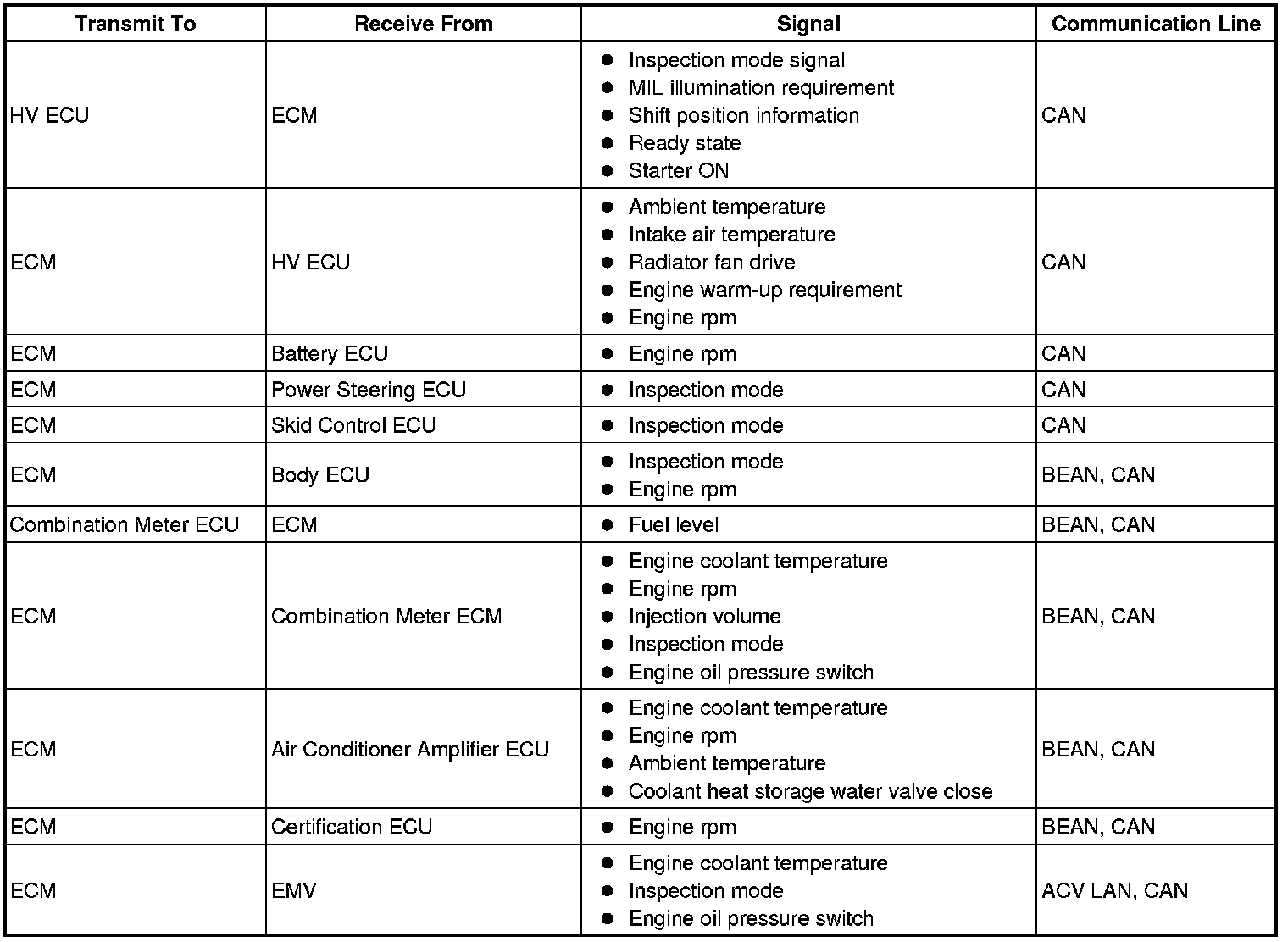

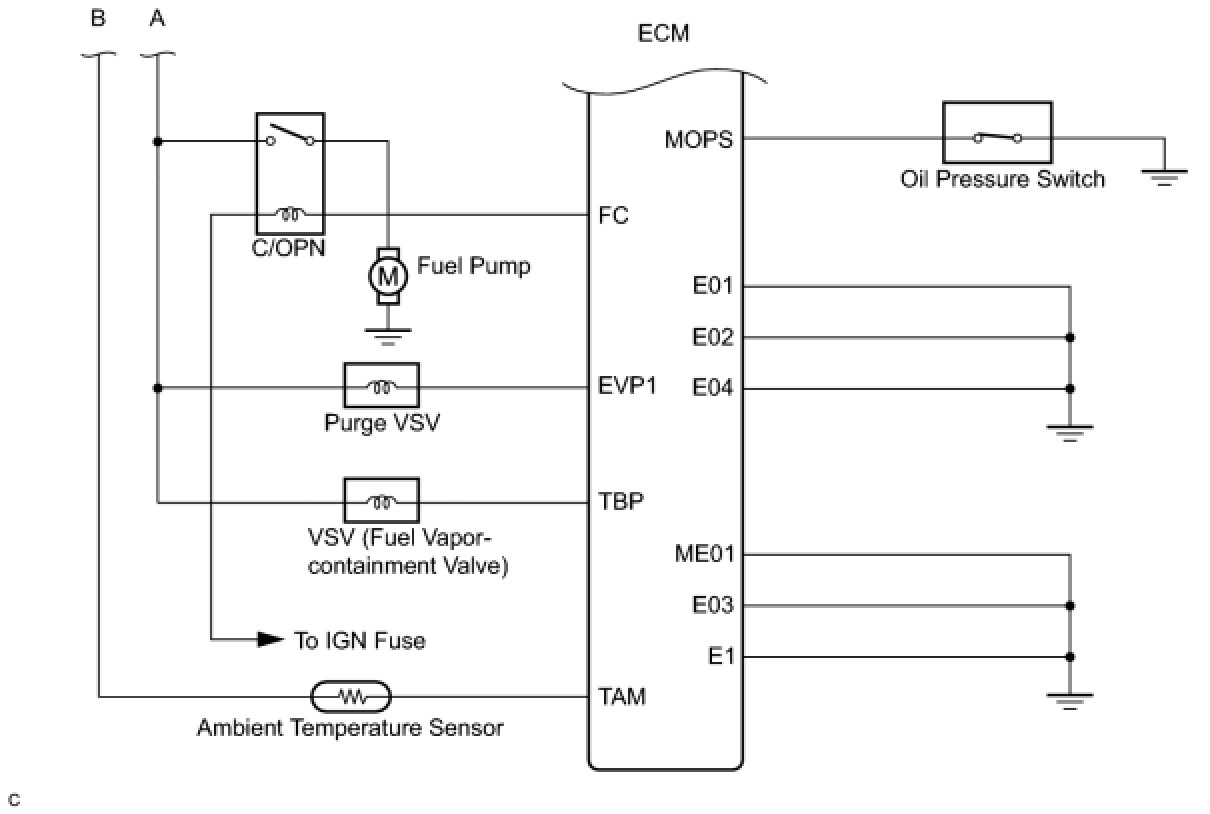

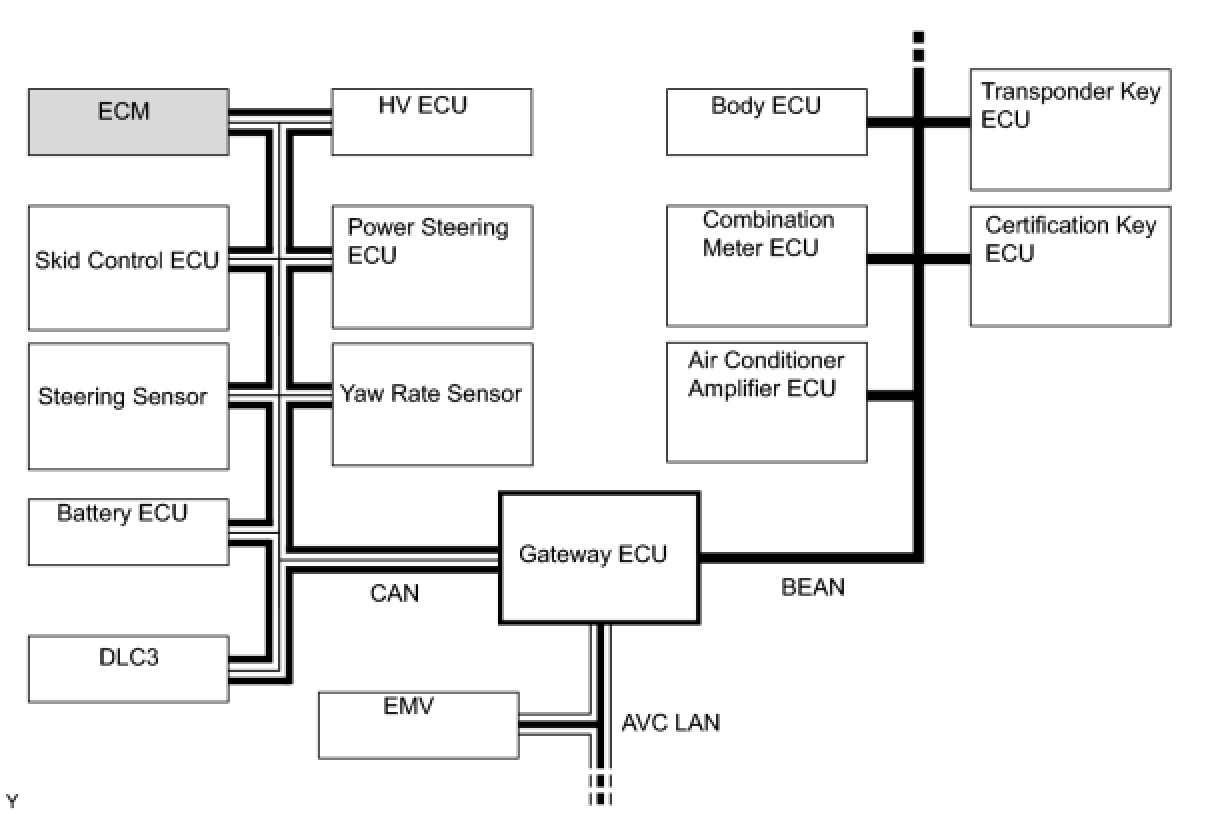

1NZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: SYSTEM DIAGRAMSYSTEM DIAGRAMCOMMUNICATIONSThe ECM communicates with the following ECM and ECUs using the signals listed below. The following table explains receiving and sending signals by ECM or ECU.
