1NZ-FXE ENGINE CONTROL SYSTEM: CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

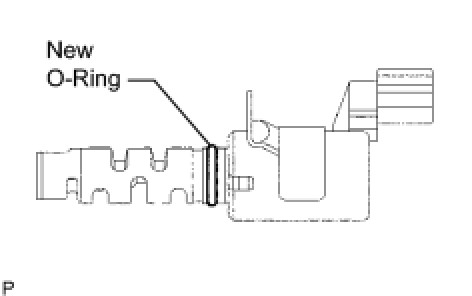

(a) Apply a light coat of engine oil to a new O-ring, then install it to the camshaft timing oil control valve.
(b) Install the camshaft timing oil control valve with the bolt.
Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)
NOTE: Be careful that the O-ring is not cracked or jammed when installing it.

(c) Connect the camshaft timing oil control valve connector.
2. INSTALL AIR CLEANER ASSEMBLY Installation
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. INSPECT FOR OIL LEAK
5. INSTALL RADIATOR SUPPORT OPENING COVER Installation
6. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
