Body - Power Window Initialization Procedure

T-SB-0221-08

August 12, 2008

Initialization of Power Window

Service Category
General

Section
Pre-Delivery Service

Market
USA

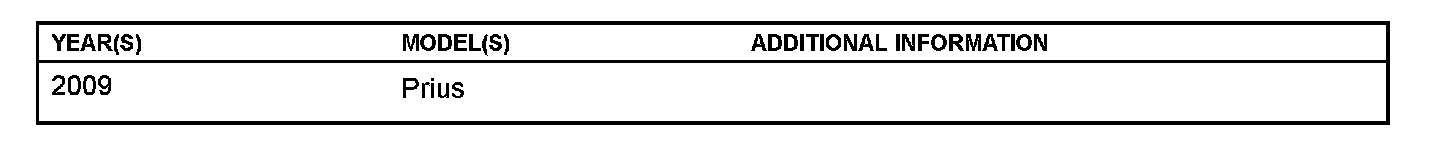

Applicability

Introduction

If the battery terminal has been disconnected, the "one-touch open and close" and 'lam protection" functions of the driver's door power window will be inoperative due to loss of the driver's door power window position memory stored in the microcomputer. Initialization of the driver's door power window will be necessary after the battery is reconnected.

Any time the battery terminal has been disconnected, the power window MUST be re-initialized.





Warranty Information

Initialization Procedure





1. Turn the ignition switch to the "IG-ON" position.

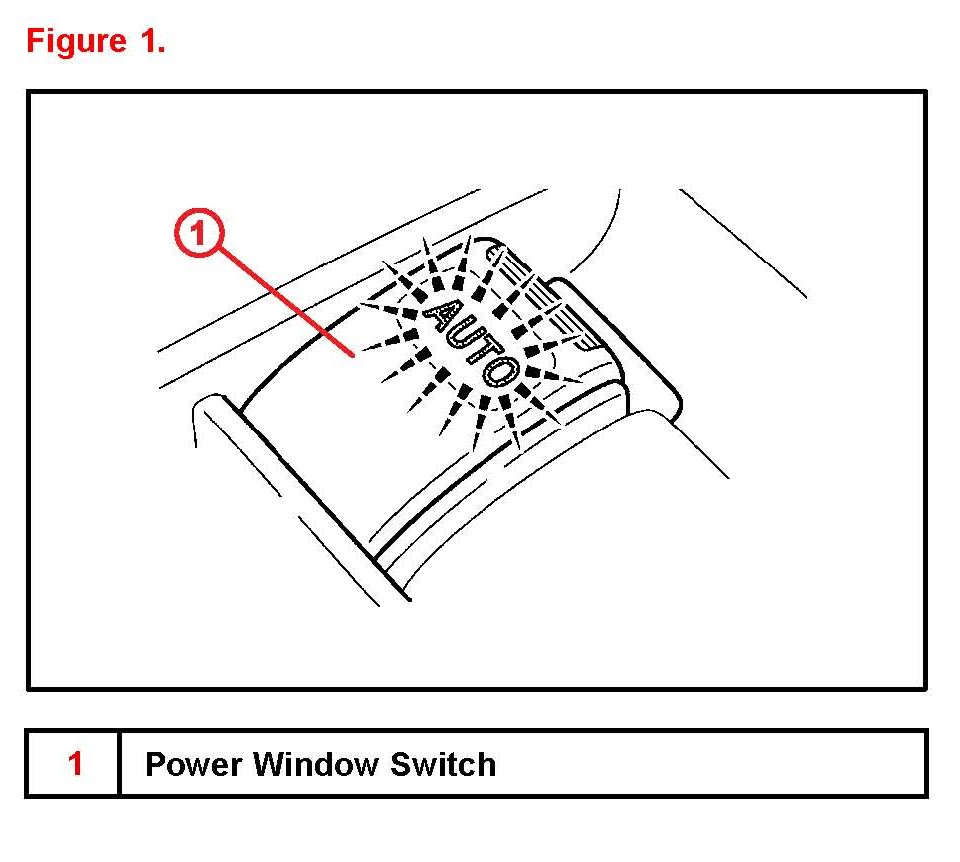

When not initialized, the power window switch for the driver's door window will blink.

2. Push "Down" and hold the driver's door power window switch to completely open the window.

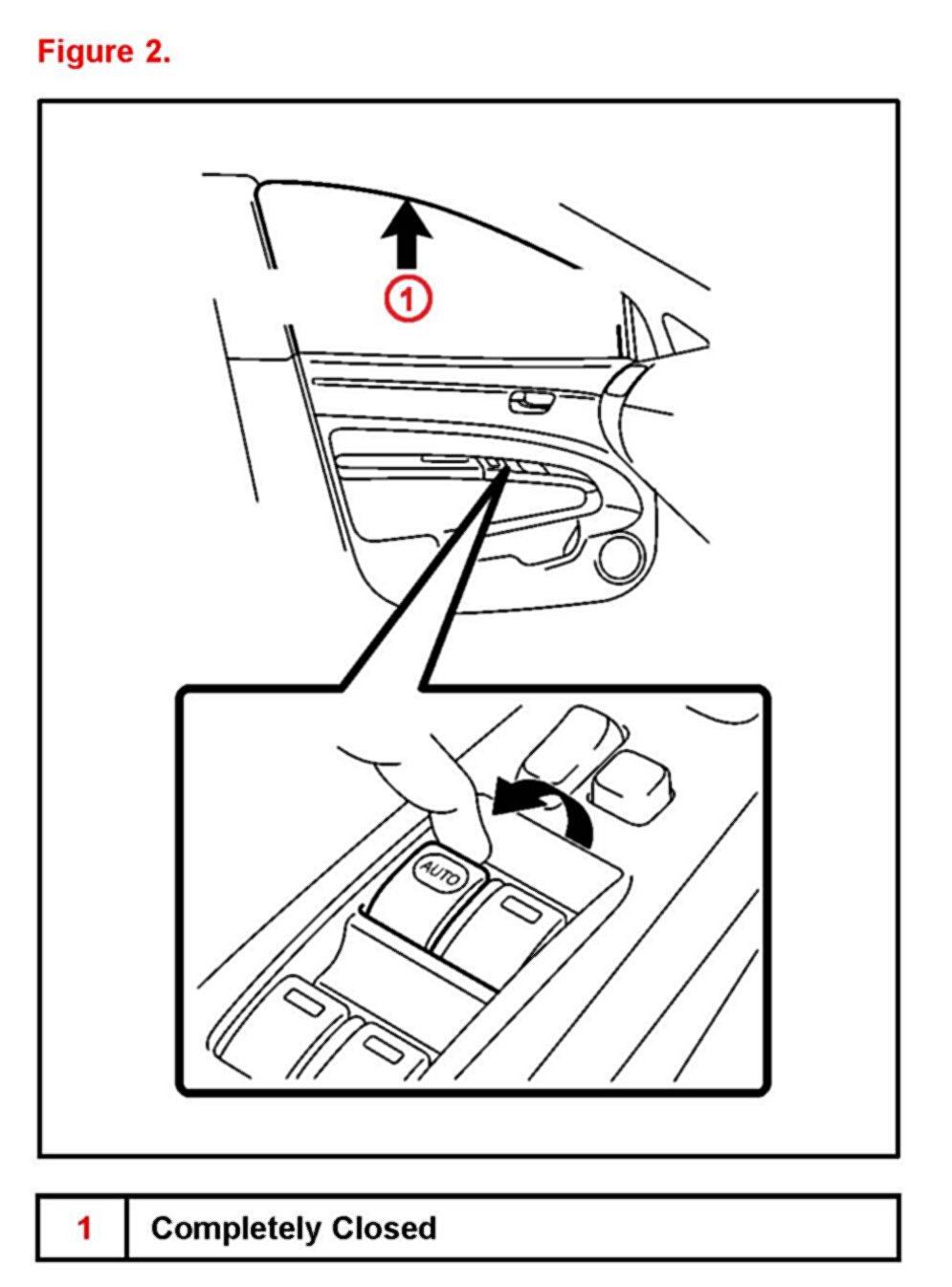

3. Pull "Up" the driver's door power window switch until the window closes. Continue holding the switch for approximately one second until the switch changes from blinking to a constant illumination.

4. Check for proper operation of the "one-touch open and close" by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.

NOTE

Jam protection function becomes effective through the above initialization procedure.
