Power Door Lock Control System

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

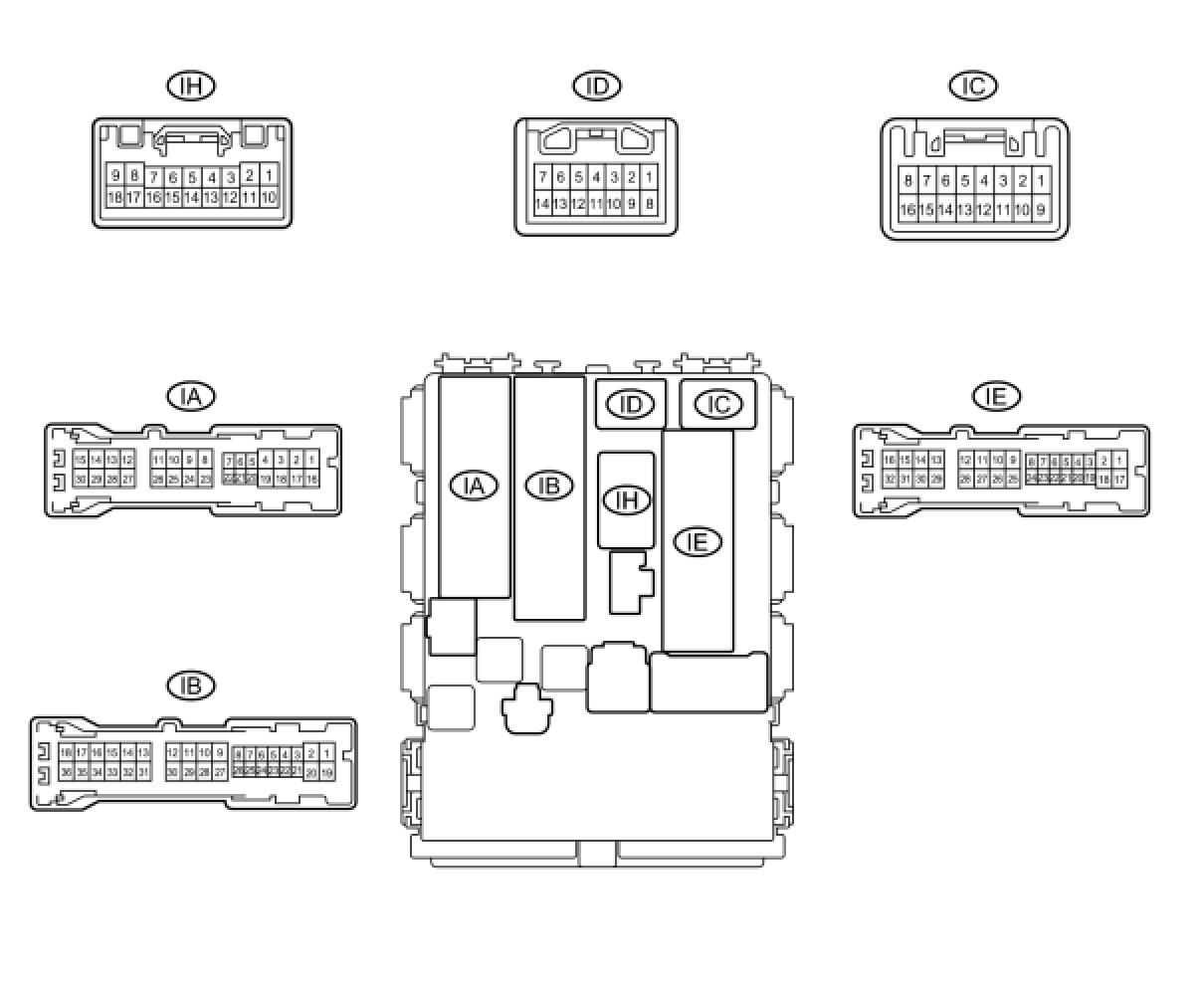

1. CHECK INSTRUMENT PANEL JUNCTION BLOCK (MAIN BODY ECU)

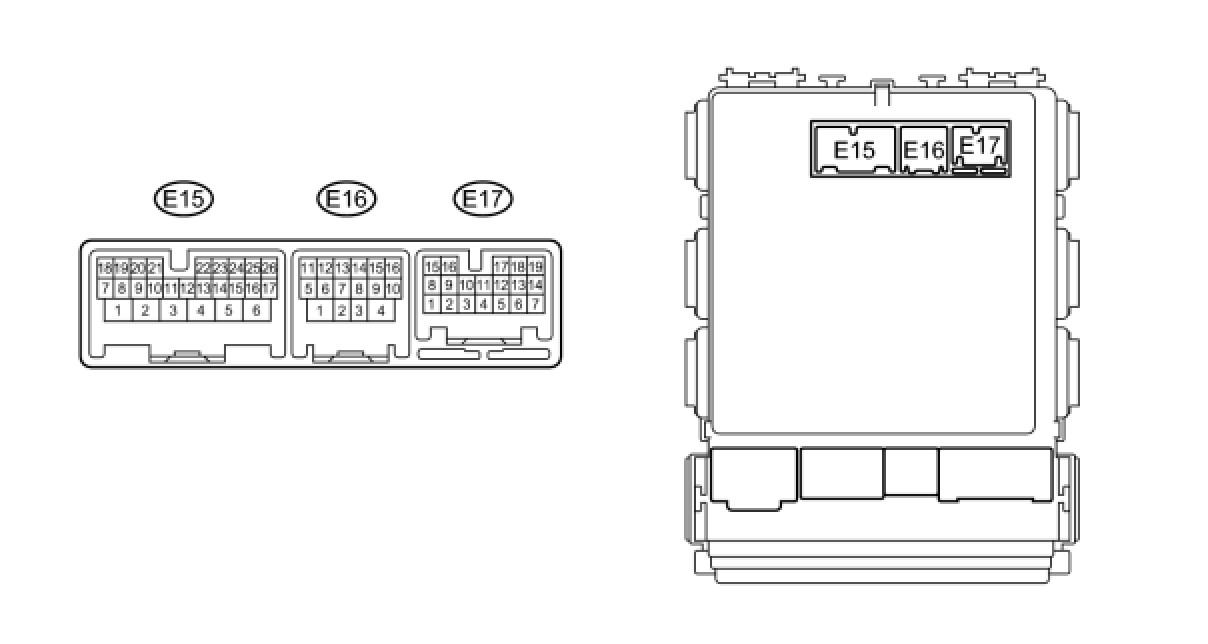

(a) Disconnect the E15, E16, IB and IE junction block connectors.
(b) Measure the voltage and resistance of the wire harness side connectors.





- *1: w/o Smart Key System
- *2: w/ Smart Key System

(c) Reconnect the E15, E16, IB and IE junction block connector.

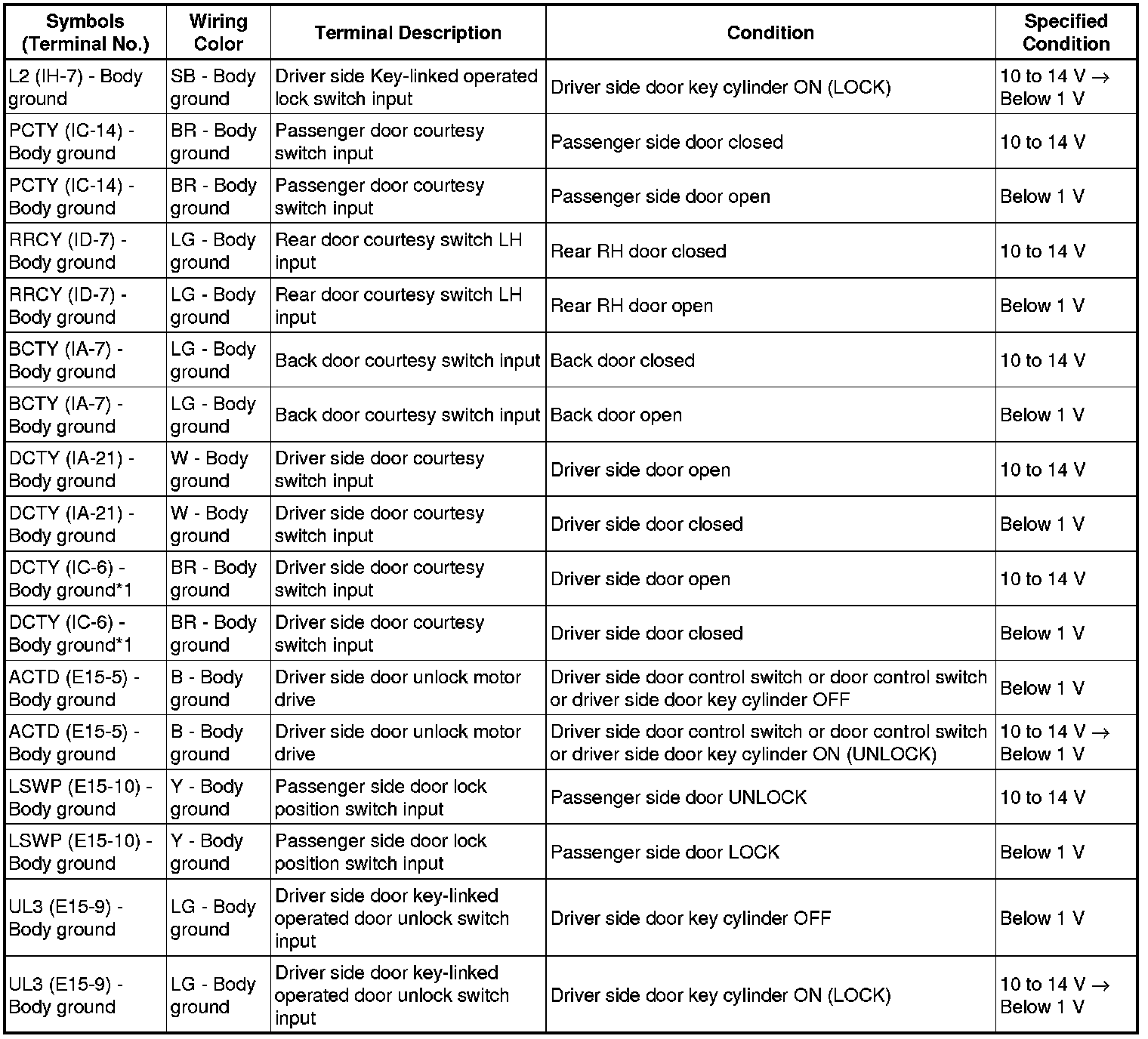

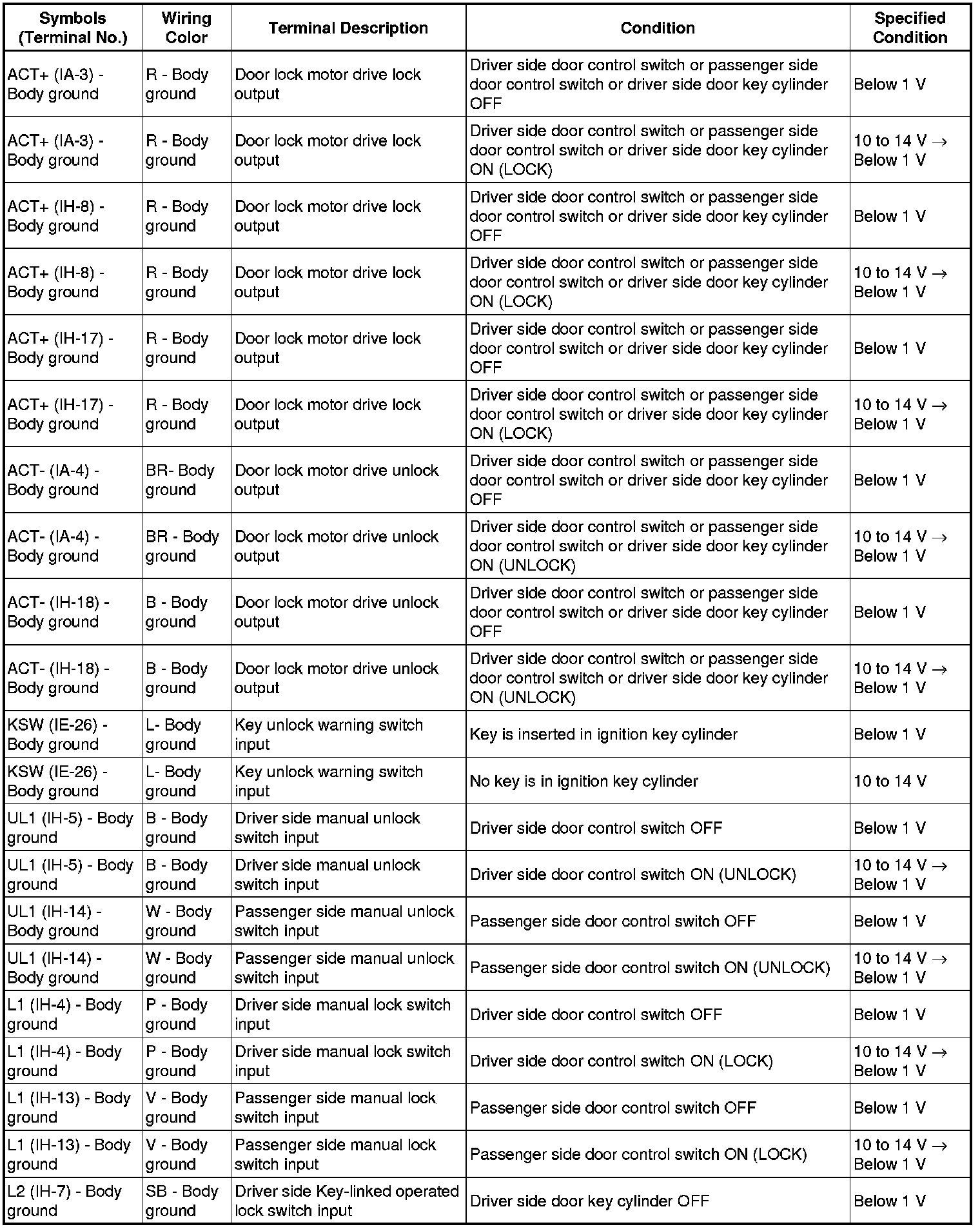

(d) Measure the voltage of the wire harness side connectors.









- *1: w/o Smart Key System
