Installation
BRAKE CONTROL: VSC OFF SWITCH: INSTALLATIONINSTALLATION 1.
INSTALL VSC OFF SWITCH
(a)

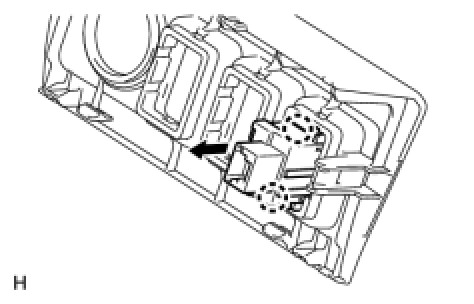

Attach the 2 claws to install the VSC OFF switch to the switch base.
(b)
Connect the VSC OFF switch connector.
2.
INSTALL SWITCH BASE
(a)
Install the switch base
Installation.
