Removal

BRAKE CONTROL: SKID CONTROL SENSOR (for 2WD): REMOVAL

REMOVAL
HINT:
- Use the same procedure for the RH and LH sides.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE REAR WHEEL
3. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
(a) Remove the deck trim side panel LH Removal.
HINT: Refer to the procedures from the removal of the rear door scuff plate LH up until the removal of the deck trim side panel LH.

4. REMOVE SKID CONTROL SENSOR WIRE

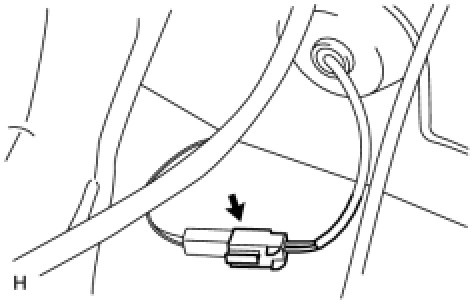

(a) Disconnect the skid control sensor wire connector.

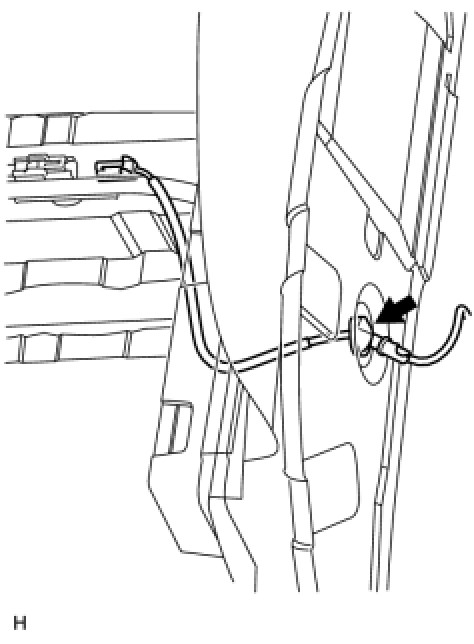

(b) Disconnect the grommet of the skid control sensor wire from the hole of the wheel house.

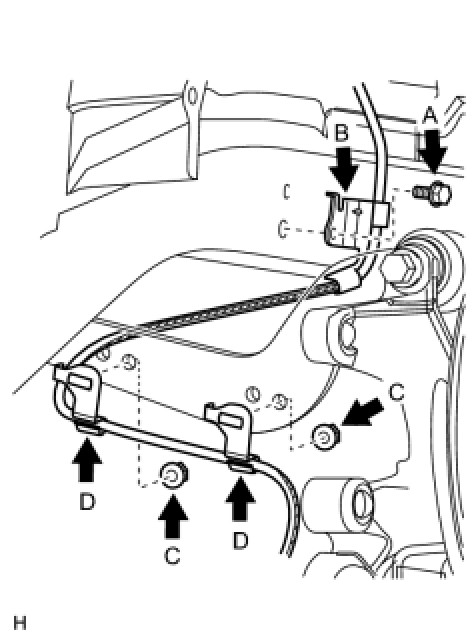

(c) Remove the bolt (labeled A) and sensor clamp (labeled B) from the side member.
(d) Remove the 2 nuts (labeled C) and 2 sensor clamps (labeled D) from the upper arm.

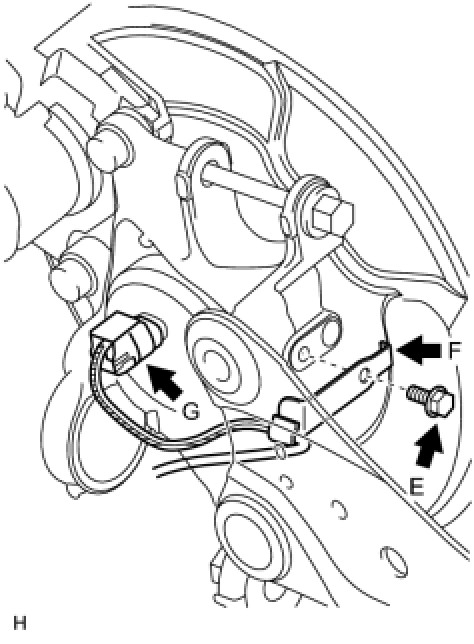

(e) Remove the bolt (labeled E) and sensor clamp (labeled F) from the carrier.
(f) Disconnect the skid control sensor wire connector (labeled G) from the skid control sensor.
5. REMOVE REAR DISC BRAKE CYLINDER MOUNTING LH Disassembly
6. REMOVE REAR DISC Disassembly
7. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY LH (SKID CONTROL SENSOR)
(a) Remove the rear axle hub and bearing LH Removal.
