2AR-FE ENGINE MECHANICAL: DRIVE BELT: REMOVAL

REMOVAL

1. REMOVE RADIATOR SUPPORT OPENING COVER





(a) Using a clip remover, remove the 9 clips and radiator support opening cover.
2. DISCONNECT RADIATOR RESERVOIR





(a) Remove the 2 bolts and disconnect the radiator reservoir.
3. REMOVE REAR ENGINE UNDER COVER RH





(a) Remove the 4 clips and rear engine under cover.
4. REMOVE FAN AND GENERATOR V BELT

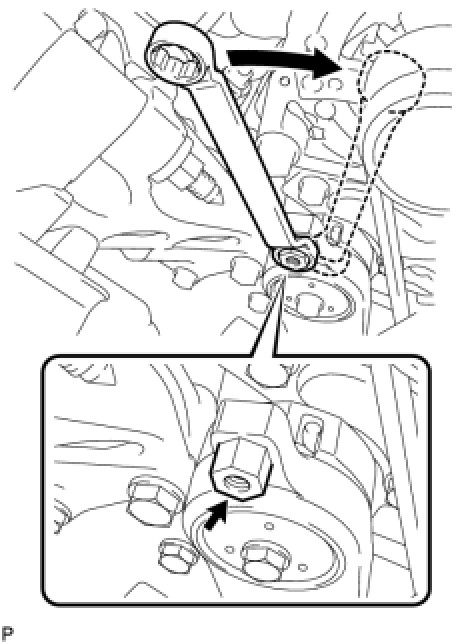

(a) Attach a wrench to the hexagonal portion of the belt tensioner as shown in the illustration, rotate the belt tensioner clockwise, and remove the V belt.
