2GR-FE ENGINE MECHANICAL: DRIVE BELT: INSTALLATION

INSTALLATION

1. INSTALL FAN AND GENERATOR V BELT

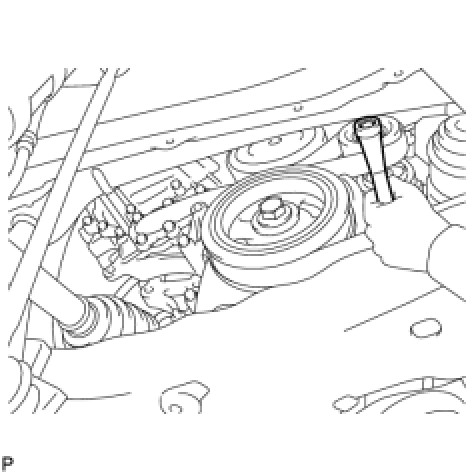

(a) Rotate the tensioner pulley counterclockwise, and then install the V-ribbed belt.





(b) If it is difficult to install the V-ribbed belt, perform the following procedure.

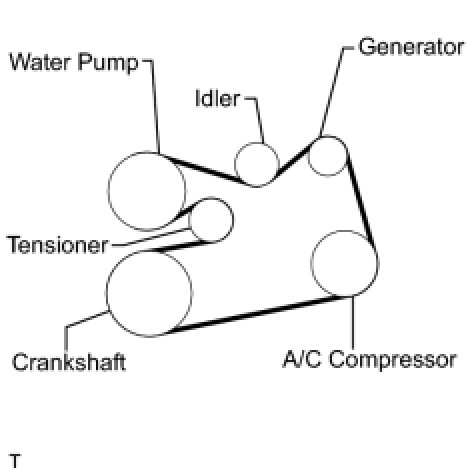

(1) Put the V-ribbed belt on everything except the tensioner pulley as shown in the illustration.
(2) While releasing the belt tension by turning the belt tensioner counterclockwise, put the V-ribbed belt on the tensioner pulley.
NOTICE:
- Put the backside of the V-ribbed belt on the tensioner pulley and idler pulley.
- Check that the V-ribbed belt is properly set to each pulley.





2. INSTALL FRONT SUSPENSION MEMBER REINFORCEMENT RH

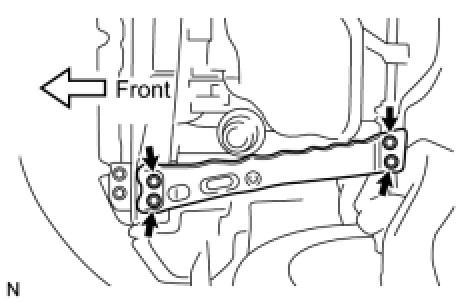

(a) Install the reinforcement with the 4 bolts.
Torque: 95 Nm (969 kgf-cm, 70 ft-lbf)
3. INSTALL ENGINE UNDER COVER RH
(a) Install the engine under cover with the 2 clips.
4. INSTALL NO. 1 ENGINE UNDER COVER Installation
5. CONNECT RADIATOR RESERVOIR TANK ASSEMBLY

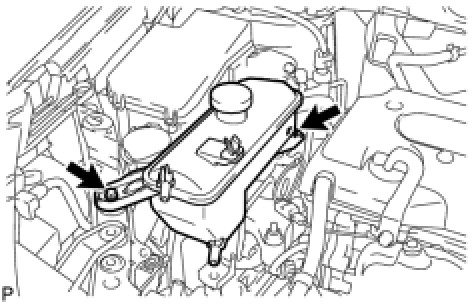

(a) Connect the reservoir tank with the 2 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
