AIR CONDITIONING: AIR CONDITIONING PANEL (for Manual Air Conditioning System): INSTALLATION

INSTALLATION

1. INSTALL AIR VENT MODE CONTROL SWITCH
(a) Attach the 2 claws to install the mode control switch.
2. INSTALL BLOWER CONTROL SWITCH
(a) Attach the 2 claws to install the blower control switch.
3. INSTALL AIR MIX CONTROL SWITCH
(a) Attach the 2 claws to install the air mix control switch.

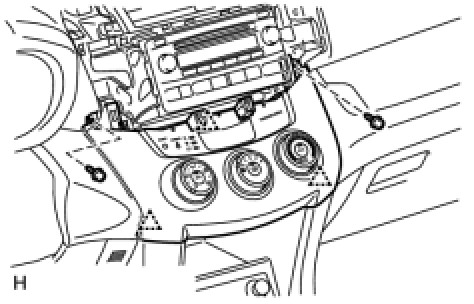

4. INSTALL AIR CONDITIONING CONTROL ASSEMBLY





(a) Connect the connectors.
(b) Attach the 3 clips to install the air conditioning control.
(c) Install the 2 screws.
5. INSTALL RADIO RECEIVER ASSEMBLY (w/ Radio Receiver)
(a) w/ Navigation System:
Install the radio receiver Installation.
(b) w/o Navigation System:
Install the radio receiver Installation.
6. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER Installation
7. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER Installation
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
