Installation

2AR-FE CHARGING: GENERATOR: INSTALLATION

INSTALLATION

1. INSTALL GENERATOR ASSEMBLY

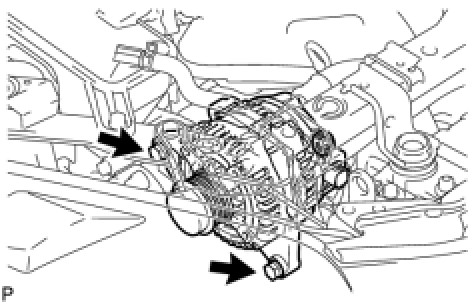

(a) Install the generator with the 2 bolts.
Torque: 52 Nm (530 kgf-cm, 38 ft-lbf)

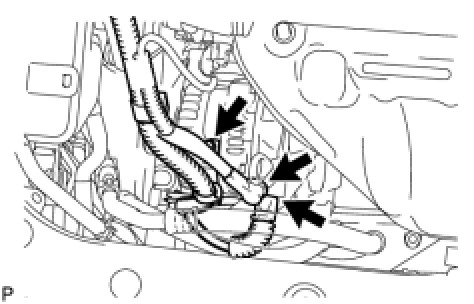

(b) Install the wire harness clamp bracket with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(c) Connect the generator wire with the nut.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
(d) Install the terminal cap.
(e) Connect the generator connector.
2. INSTALL WIRE HARNESS CLAMP BRACKET

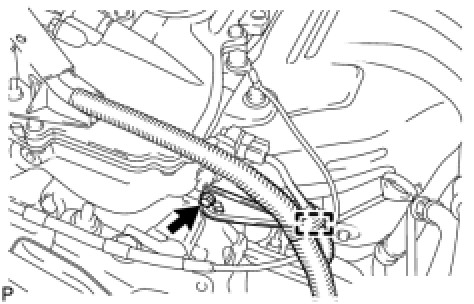

(a) Install the clamp bracket with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Attach the wire harness clamp to the clamp bracket.
3. INSTALL FAN AND GENERATOR V BELT
(a) Install the belt Installation.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
