Dynamic Laser Cruise Control System
CRUISE CONTROL: DYNAMIC LASER CRUISE CONTROL SYSTEM: TERMINALS OF ECUTERMINALS OF ECU 1.

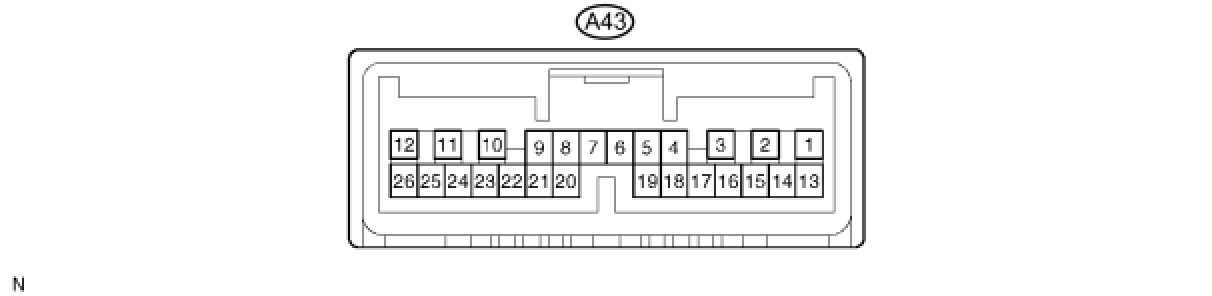

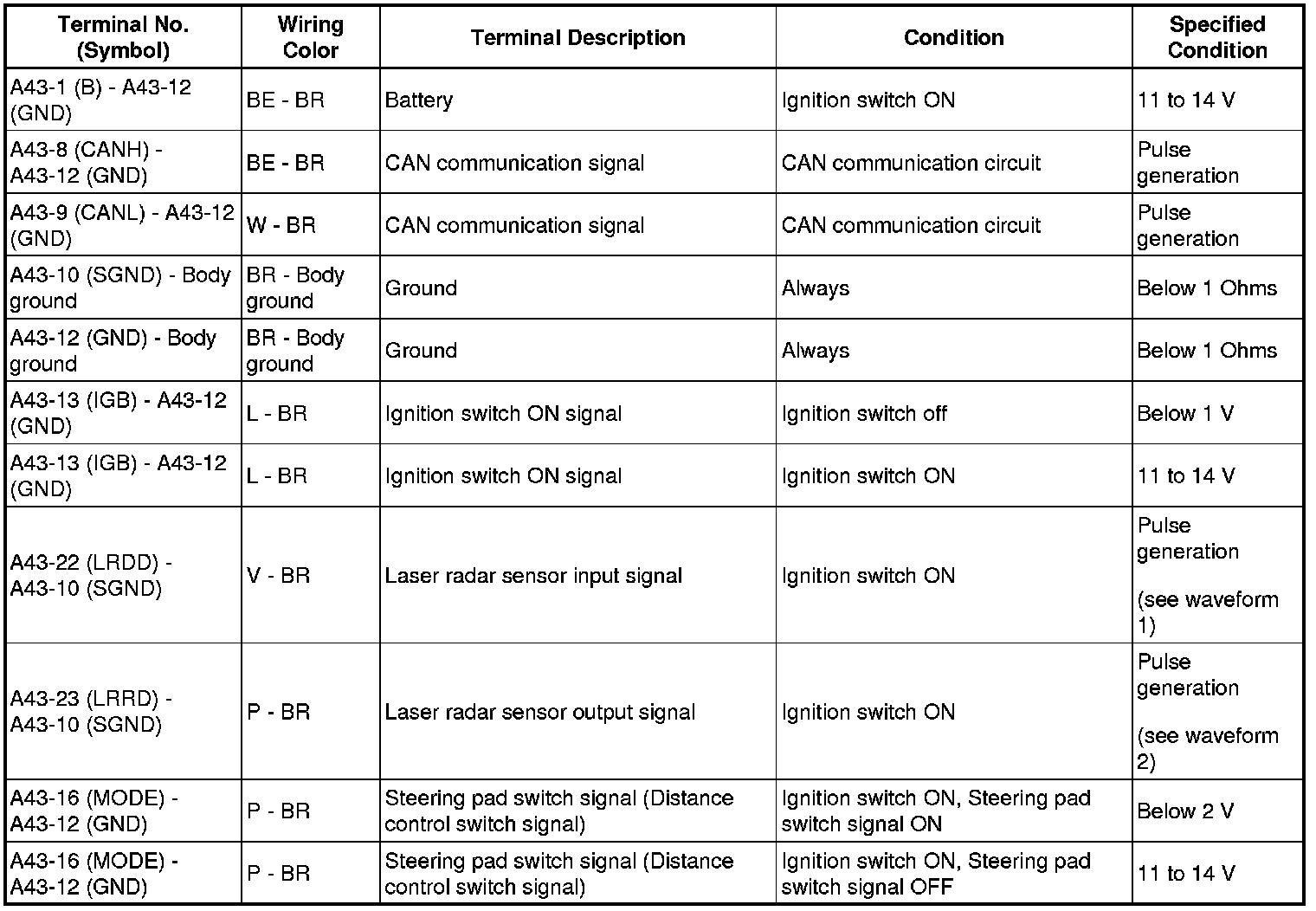

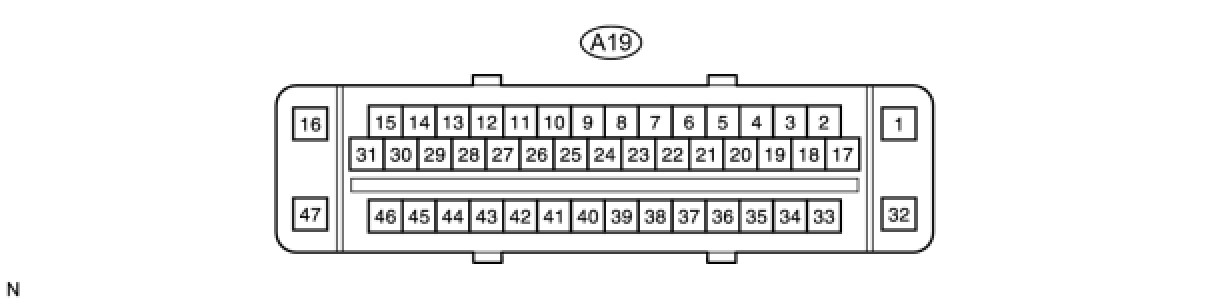

CHECK DISTANCE CONTROL ECU
(a)

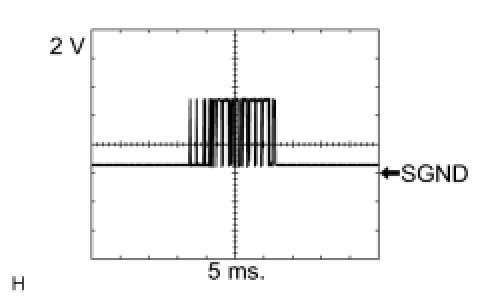

Using an oscilloscope, check waveform 1.
(b)

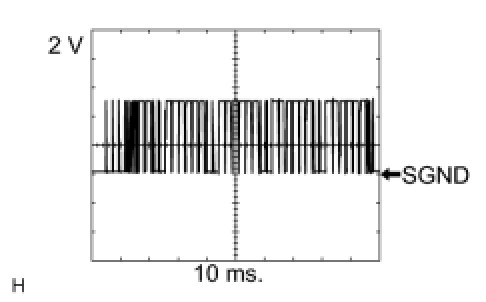

Using an oscilloscope, check waveform 2.
2.

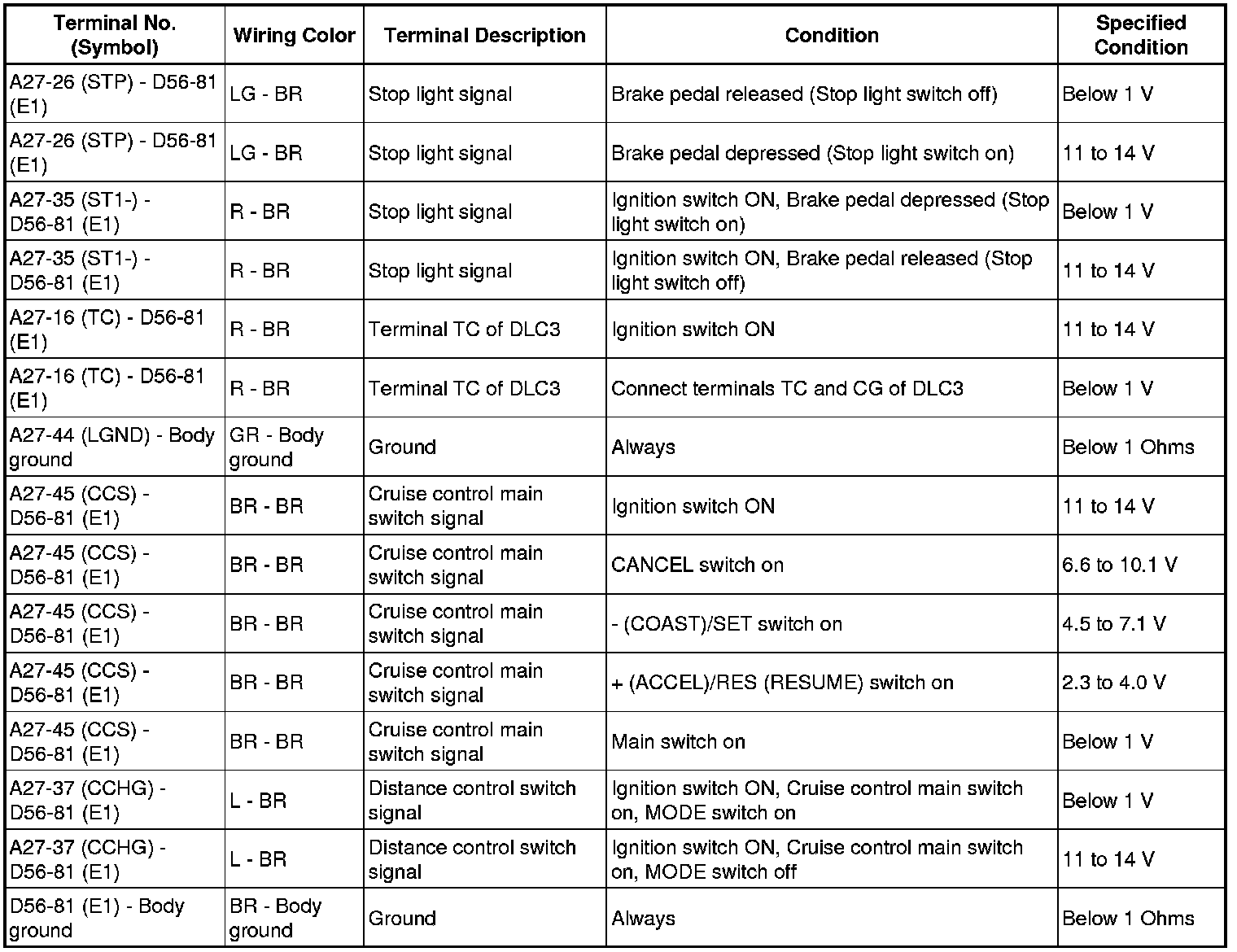

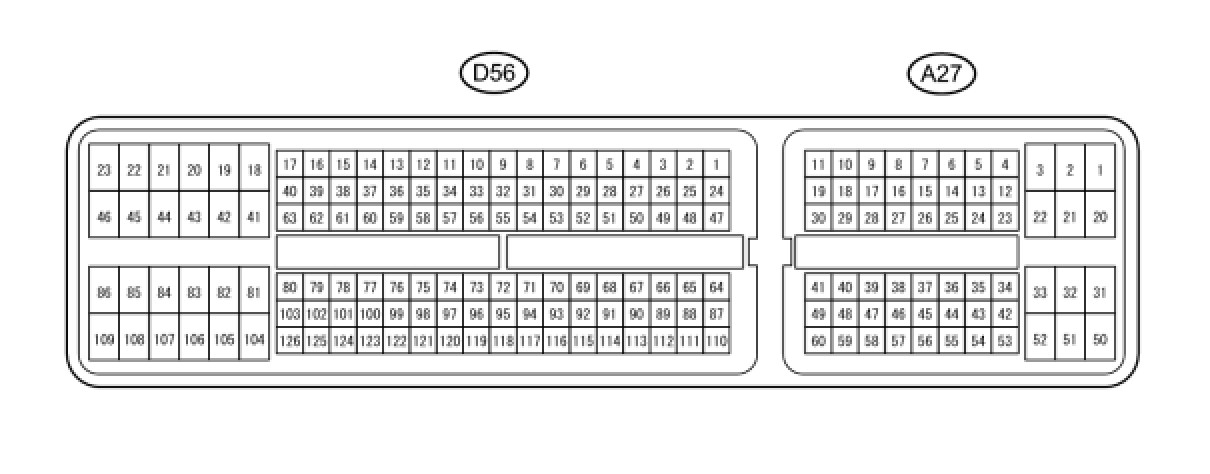

CHECK ECM
3.

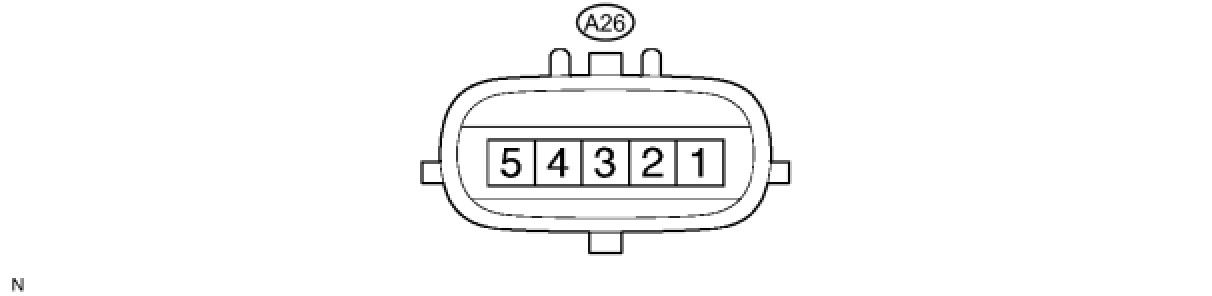

CHECK LASER RADAR SENSOR
(a)
Using an oscilloscope, check waveform 1.
(b)
Using an oscilloscope, check waveform 2.
4.

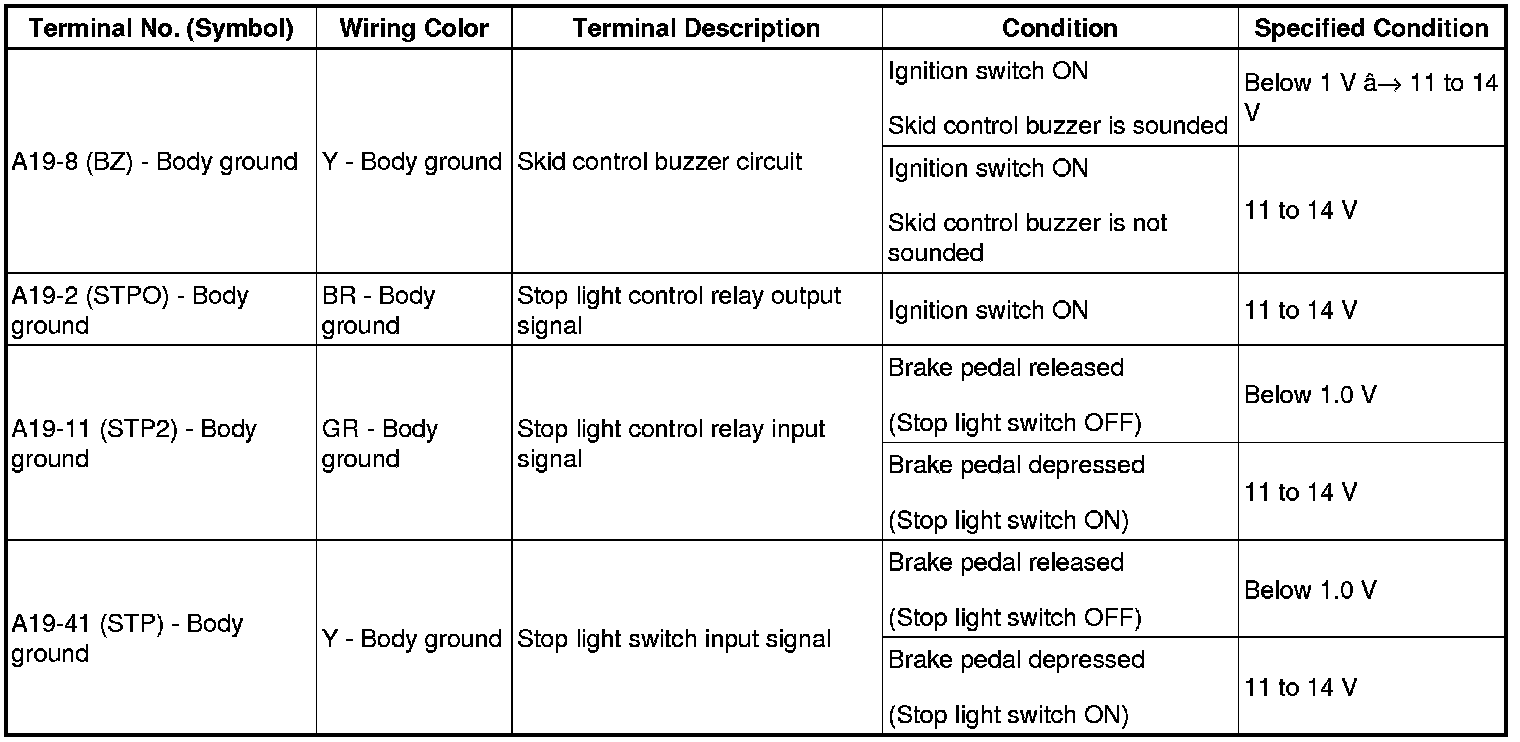

BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)
