Removal








HEATING / AIR CONDITIONING: COMPRESSOR (for 2UZ-FE): REMOVAL

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair
2. REMOVE FAN AND GENERATOR V BELT
(a) Remove the fan and generator V belt Removal.





3. REMOVE FENDER APRON MUDGUARD SEAL LH
(a) Remove the 6 clips and seal.
4. DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE





(a) Remove the bolt and disconnect the cooler refrigerant suction hose from the cooler compressor.
(b) Remove the O-ring from the cooler refrigerant suction hose.

NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

5. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE





(a) Remove the bolt and disconnect the cooler refrigerant discharge hose from the cooler compressor.
(b) Remove the O-ring from the cooler refrigerant discharge hose.

NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

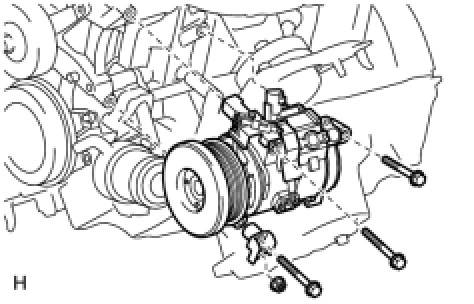

6. REMOVE COOLER COMPRESSOR ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 3 bolts, nut, cooler compressor and No. 1 compressor stay.
