Oil Pan, Engine

OIL PAN SUB-ASSEMBLY

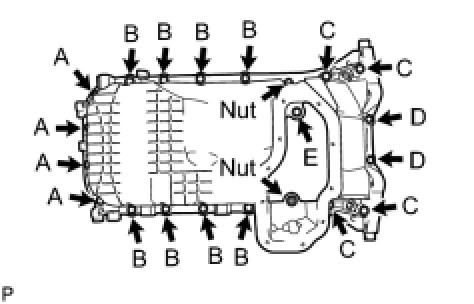

Temporarily install the No. 1 oil pan with the 18 bolts, 2 nuts.

Bolt Length:

Uniformly tighten the bolts and nuts in several passes.

For bolt A, D, E
Torque 7.5 Nm (76 kgf-cm, 66 in-lbf)

For bolt B, C, nut
Torque 28 Nm (286 kgf-cm, 21 ft-lbf)

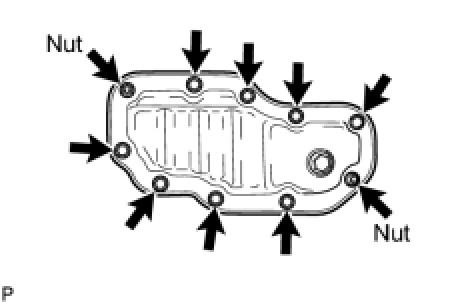

NO. 2 OIL PAN SUB-ASSEMBLY

Install the No. 2 oil pan with the 8 bolts and 2 nuts. Uniformly tighten the bolts and nuts in several passes.

Torque 7.5 Nm (76 kgf-cm, 66 in-lbf)
