Oil Pump Torque and Sequence

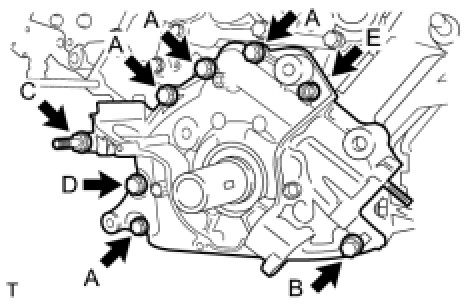

OIL PUMP ASSEMBLYInstall the oil pump with the 7 standard bolts and 6 mm hexagon wrench bolt. Uniformly tighten the bolts in several steps.
For bolt A, B, C, E
Torque
16 Nm (158 kgf-cm, 11 ft-lbf)
For bolt D
Torque
31 Nm (311 kgf-cm, 23 ft-lbf)

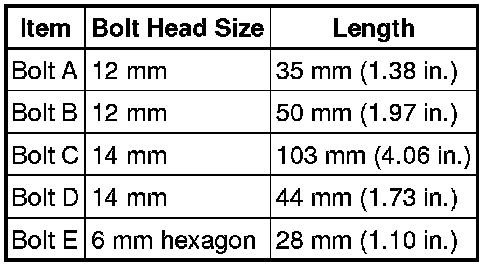

Bolt Length:
