SPECIFICATIONS: 2UZ-FE ENGINE CONTROL: SERVICE DATA
SERVICE DATA

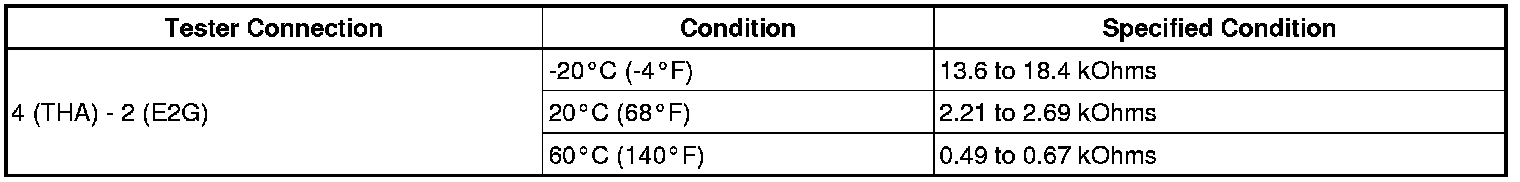

MAF Meter:

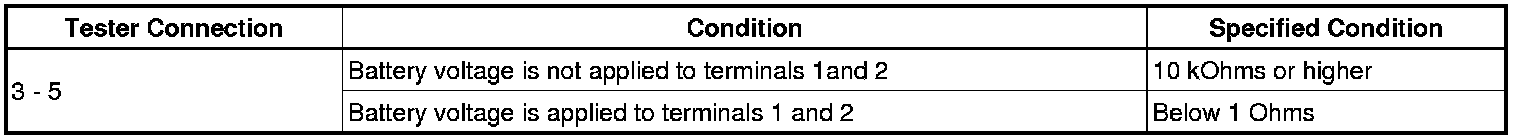

Camshaft Timing Oil Control Valve:
VVT Sensor:
Crankshaft Position Sensor:

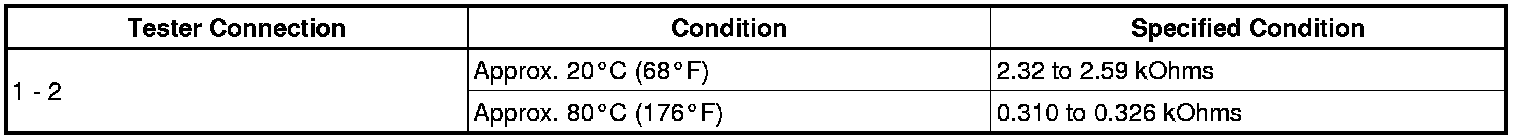

Engine Coolant Temperature Sensor:
Throttle Body:
Knock Sensor:

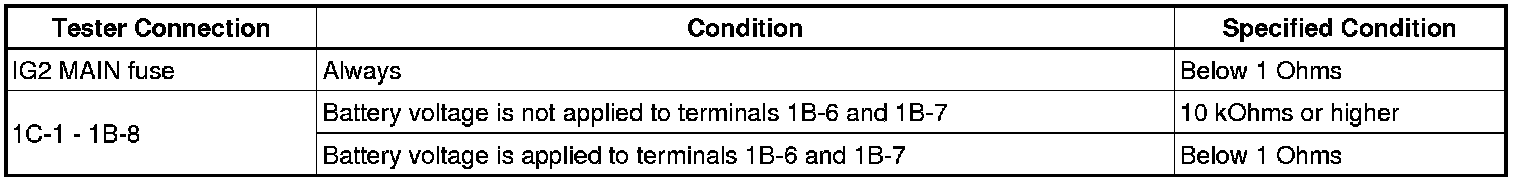

Integration Relay (IG2):
Integration Relay (EFI):
Fuel Pump Relay:

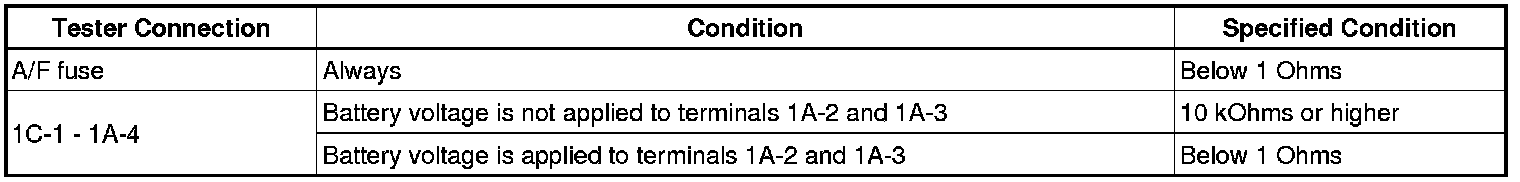

Integration Relay (A/F):
Circuit Opening Relay:
Air Fuel Ration Sensor (for Bank 1 Sensor 1):
Air Fuel Ration Sensor (for Bank 2 Sensor 1):
Heated Oxygen Sensor (for Bank 1 Sensor 2):
Heated Oxygen Sensor (for Bank 2 Sensor 2):

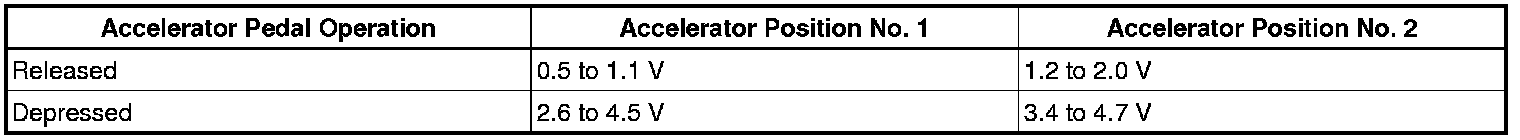

Accelerator Pedal Sensor:

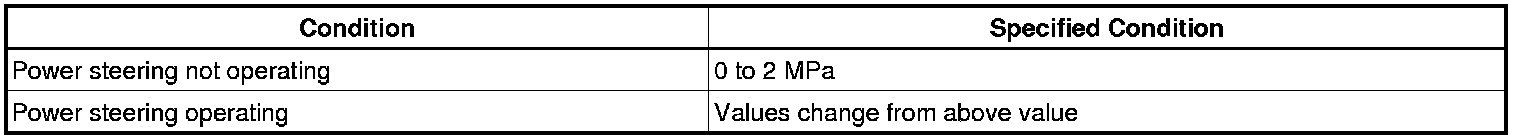

Power Steering Oil Pressure Sensor:

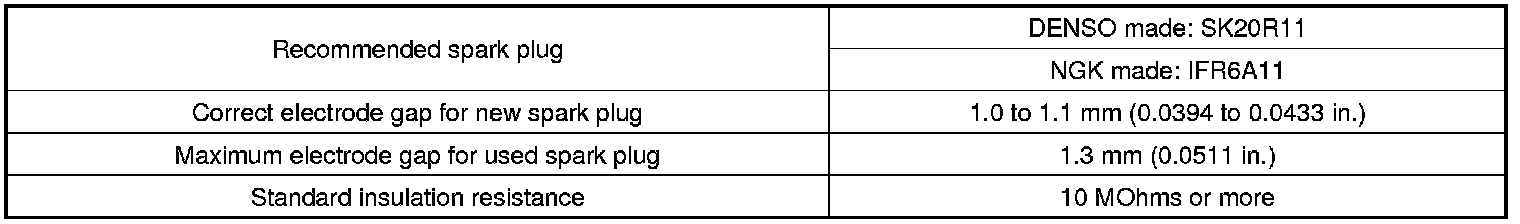

Spark Plug
