Installation

TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: INSTALLATION

INSTALLATION

1. INSTALL TIRE PRESSURE WARNING ECU

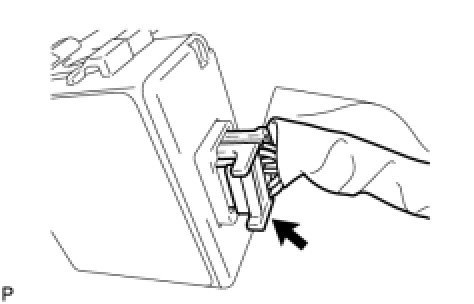

(a) Connect the connector to the tire pressure warning ECU.

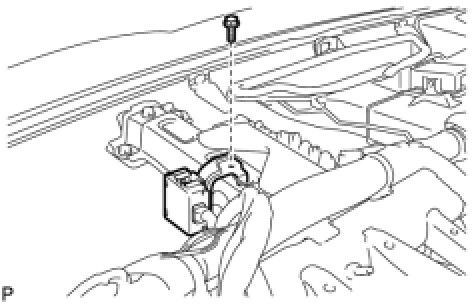

(b) Install the tire pressure warning ECU with the screw.
2. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
HINT: Refer to the instructions for INSTALLATION of the instrument panel safety pad Installation.

3. CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
4. REGISTER TRANSMITTER ID
HINT: Registration.

5. INSPECT TIRE PRESSURE WARNING SYSTEM
HINT: Test Mode Procedure.

6. INITIALIZE SYSTEM
NOTICE:
- Be sure to register the transmitter IDs of all tires in the ECU before initialization.
- Be sure to inflate all tires to the proper inflation pressure before initialization.
HINT: Initialization.
