ECM Communication Stop Mode

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: ECM Communication Stop Mode

ECM Communication Stop Mode

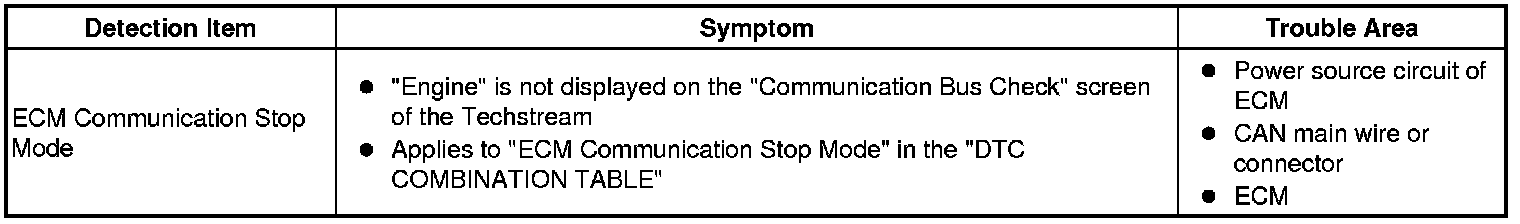

DESCRIPTION

WIRING DIAGRAM

INSPECTION PROCEDURE
NOTICE:
- Turn the ignition switch off before measuring the resistances of CAN bus main wires and CAN bus branch wires.
- After the ignition switch is turned off, check that the key reminder warning system and light reminder warning system are not in operation.
- Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches, or the doors. If any doors need to be opened in order to check connectors, open the doors and leave them open.
HINT: Operating the ignition switch, any switches, or any doors triggers related ECU and sensor communication with the CAN. This communication will cause the resistance value to change.

PROCEDURE

1. CHECK OPEN IN CAN BUS WIRE (ECU MAIN BUS WIRE)
(a) Disconnect ECM connector (E5).

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:

NG -- REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR
OK -- Continue to next step.

2. CHECK WIRE HARNESS (E1, BATT, +BM, IGSW)
(a) Connect the ECM connector (E5).

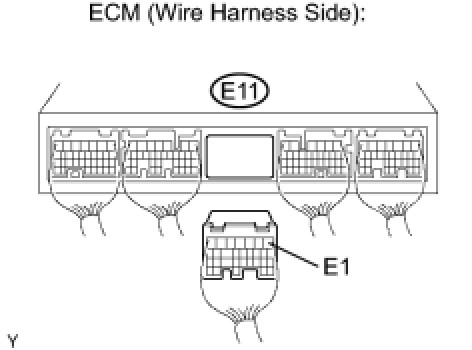

(b) Disconnect the ECM connector (E11).

(d) Connect the ECM connector (E11).

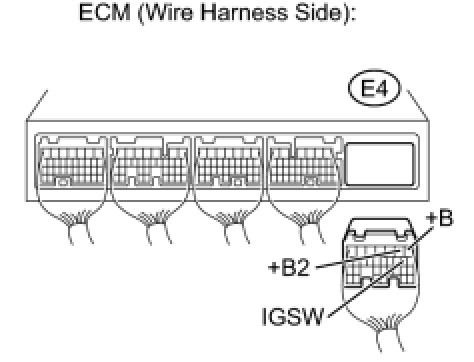

(e) Disconnect the ECM connector (E4).

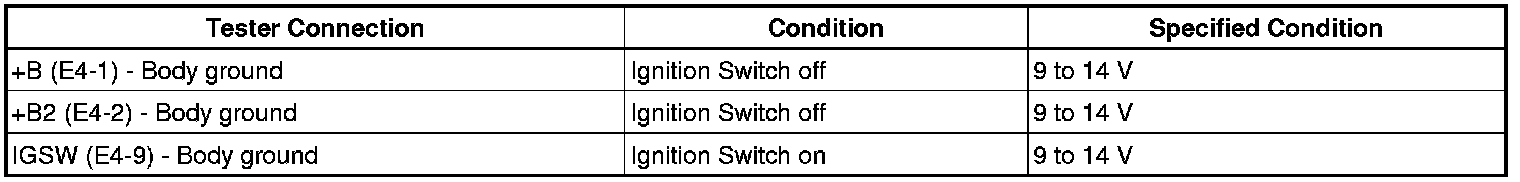

(f) Measure the voltage according to the value(s) in the table below.
Standard voltage:

NG -- CHECK ECM POWER SOURCE CIRCUIT
OK -- REPLACE ECM
