Removal








SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION ECU: REMOVAL

REMOVAL

1. PRECAUTION
CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)
HINT: Removal

4. REMOVE FRONT SEAT ASSEMBLY (for Power Seat)
HINT: Removal

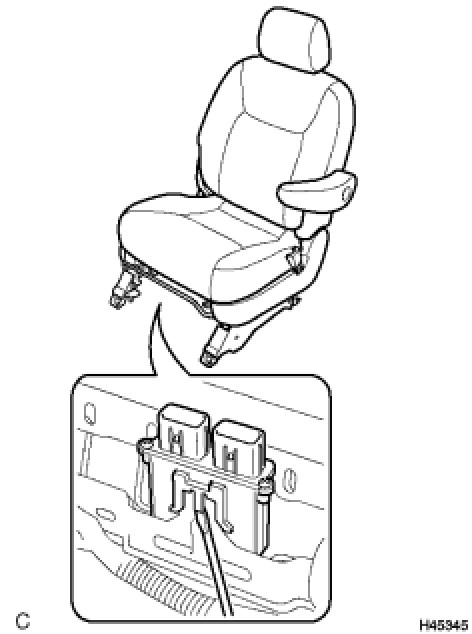

5. REMOVE OCCUPANT CLASSIFICATION ECU
(a) Disconnect the 2 connectors from the occupant classification ECU.





(b) Using a screwdriver, remove the occupant classification ECU.
