2TR-FE ENGINE MECHANICAL: DRIVE BELT: INSTALLATION

INSTALLATION

1. INSTALL FAN & GENERATOR V BELT
(a) Provisionally install the V belt onto each pulley.
NOTICE: Install the V belt onto each pulley and finally install the V belt onto the V-ribbed belt tensioner.

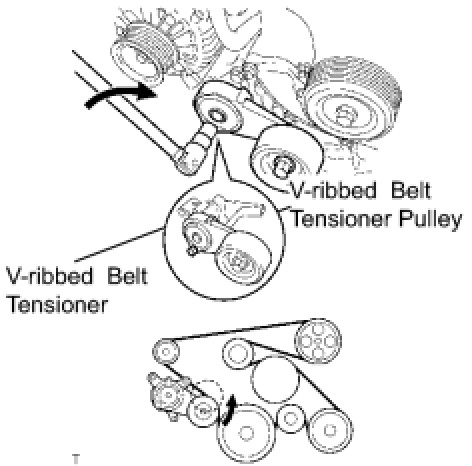

(b) Turn the hexagonal bolt on the V-ribbed belt tensioner clockwise and install the V belt onto the V-ribbed belt tensioner pulley.
2. INSPECT FAN & GENERATOR V BELT Testing and Inspection
