Oil Pan, Engine

OIL PAN SUB-ASSEMBLY

NOTE: Install the oil pan within 3 minutes of applying the seal packing. Tighten the oil pan bolts and nuts within 15 minutes of installing the oil pan. Otherwise, the seal packing must be removed and reapplied.

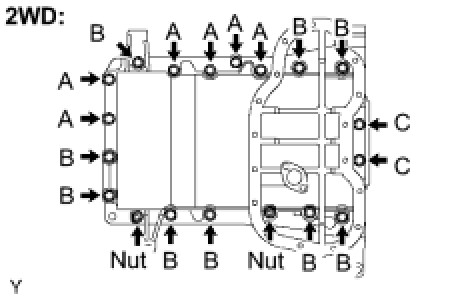

Install the oil pan with the 17 bolts and 2 nuts. Tighten the bolts and nuts uniformly in several steps (for 2WD).
Torque 10 Nm (102 kgf-cm, 7.4ft-lbf) for 10 mm (0.39 in.) head
Torque 21 Nm (214 kgf-cm, 16ft-lbf) for 12 mm (0.47 in.) head

Each bolt length is as follows:

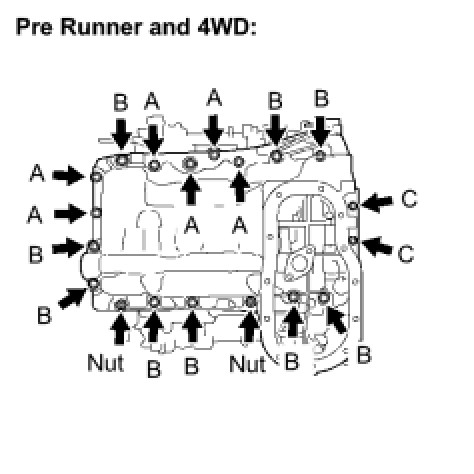

Install the oil pan with the 17 bolts and 2 nuts. Tighten the bolts and nuts uniformly in several steps (for Pre Runner and 4WD).
Torque 10 Nm (102 kgf-cm, 7ft-lbf) for 10 mm (0.39 in.) head
Torque 21 Nm (214 kgf-cm, 16ft-lbf) for 12 mm (0.47 in.) head

Each bolt length is as follows:






NO.2 OIL PAN SUB-ASSEMBLY

NOTE: Install the oil pan No. 2 within 3 minutes of applying the seal packing. Tighten the oil pan No. 2 bolts and nuts within 15 minutes of installing the oil pan No. 2. Otherwise, the seal packing must be removed and reapplied.

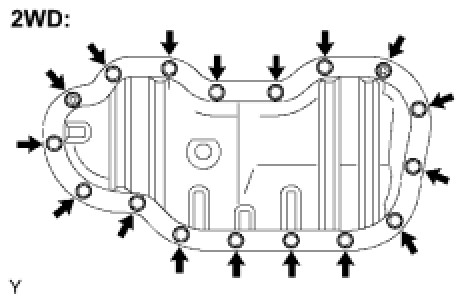

Install the oil pan No. 2 with the 15 bolts and 2 nuts. Tighten the bolts and nuts uniformly in several steps (for 2WD).
Torque 9.0 Nm (92 kgf-cm, 80in-lbf) for bolts
Torque 10 Nm (102 kgf-cm, 7.4ft-lbf) for nut

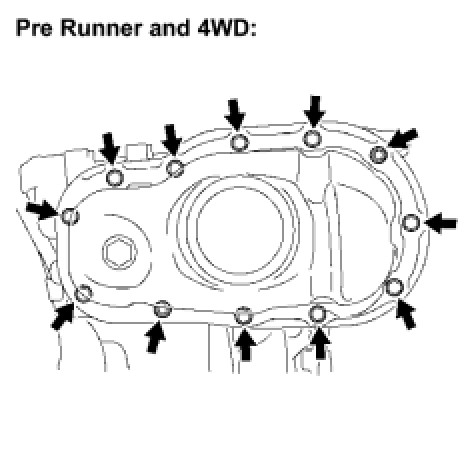

Install the oil pan No. 2 with the 10 bolts and 2 nuts. Tighten the bolts and nuts uniformly in several steps (for Pre Runner and 4WD).
Torque 9.0 Nm (92 kgf-cm, 80 in-lbf) for bolts
Torque 10 Nm (102 kgf-cm, 7.4ft-lbf)
